41 Subboiling Stills Table of Contents Subboiling Still Assemblies 42 Condenser Assembly 42 Subboiling Still Components 43 Subboiling Still Accessories 43

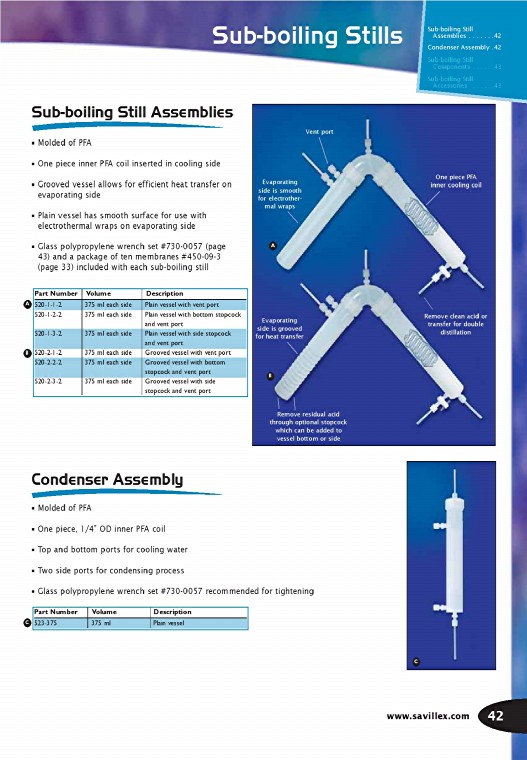

A B Subboiling Still Assemblies Molded of PFA One piece inner PFA coil inserted in cooling side Grooved vessel allows for efficient heat transfer on evaporating side Plain vessel has smooth surface for use with electrothermal wraps on evaporating side Glass polypropylene wrench set #7300057 (page 43) and a package of ten membranes #450093 (page 33) included with each subboiling still Part Number Volume Description 520112 375 ml each side Plain vessel with vent port 520122 375 ml each side Plain vessel with bottom stopcock and vent port 520132 375 ml each side Plain vessel with side stopcock and vent port 520212 375 ml each side Grooved vessel with vent port 520222 375 ml each side Grooved vessel with bottom stopcock and vent port 520232 375 ml each side Grooved vessel with side stopcock and vent port Condenser Assembly Molded of PFA One piece 1/4” OD inner PFA coil Top and bottom ports for cooling water Two side ports for condensing process Subboiling Stills Glass polypropylene wrench set #7300057 recommended for tightening Part Number Volume Description C 523375 375 ml Plain vessel Evaporating side is smooth for electrothermal wraps A Evaporating side is grooved for heat transfer B Vent port Remove residual acid through optional stopcock which can be added to vessel bottom or side C Subboiling Still Assemblies 42 Condenser Assembly 42 Subboiling Still Components 43 Subboiling Still Accessories 43 One piece PFA inner cooling coil Remove clean acid or transfer for double distillation wwwsavillexcom 42
