Impingers 39 Impinger Accessories 40 A B C D 39 Impingers D C B A Phone 9529354100 Impingers Molded of PFA Impingers are suitable for use in Environmental Protection Agency procedures Glass polypropylene wrench set #7300057 recommended for tightening 375 ml impingers Grooved vessel allows for efficient heat transfer Top port on 60 ml impingers has through port location that allows tubing to pass through to vessel bottom Vertical port allows for close assembly of sampling train Ultem® clamp does not contact fluid stream Reduced 23 mm orifice available as a pushin insert (see Impinger Accessories on page 40) Part Number Volume Description Diameter x Height Vessel Design Port Style 2010601203326 60 ml Impinger with 33 mm 368 mm x 1740 mm Plain (2) 1/8” tube ports threaded transfer closure 145" x 685" One on top one on side 2010601203327 60 ml Impinger with 33 mm 373 mm x 1740 mm Plain (2) 1/8” tube ports threaded transfer closure 147" x 685" PFA insert and Ultem® clamp 2010601203336 60 ml Impinger with 33 mm 368 mm x 1739 mm Plain (2) 1/4” tube ports threaded transfer closure 145" x 683" One on top one on side 2010601203337 60 ml Impinger with 33 mm 373 mm x 1739 mm Plain (2) 1/4” tube ports threaded transfer closure 147" x 683" PFA insert and Ultem® clamp 50037502 375 ml Vessel only 536 mm x 2967 mm 211" x 1168" Plain 50037506 375 ml Vessel only 536 mm x 2967 mm 211" x 1168" Grooved 5013750205842 375 ml Impinger with 11/2” FNPT 582 mm x 3287 mm Plain (2) 1/2” tube ports threaded transfer closure 229" x 1294" 5013750605842 375 ml Impinger with 11/2” FNPT 582 mm x 3287 mm Grooved (2) 1/2” tube ports threaded transfer closure 229" x 1294"

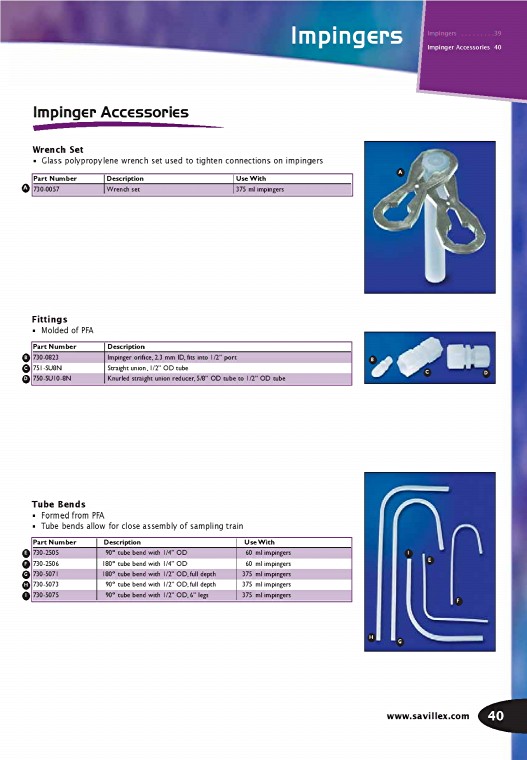

A B C D E F G H I Impinger Accessories Wrench Set Glass polypropylene wrench set used to tighten connections on impingers Part Number Description Use With 7300057 Wrench set 375 ml impingers Fittings Molded of PFA Part Number Description 7300823 Impinger orifice 23 mm ID fits into 1/2” port 751SU8N Straight union 1/2” OD tube 750SU108N Knurled straight union reducer 5/8” OD tube to 1/2” OD tube Tube Bends Formed from PFA Tube bends allow for close assembly of sampling train Part Number Description Use With 7302505 90º tube bend with 1/4” OD 60 ml impingers 7302506 180º tube bend with 1/4” OD 60 ml impingers 7305071 180º tube bend with 1/2” OD full depth 375 ml impingers 7305073 90º tube bend with 1/2” OD full depth 375 ml impingers 7305075 90º tube bend with 1/2” OD 6” legs 375 ml impingers Impingers B H A G I Impingers 39 Impinger Accessories 40 C D E wwwsavillexcom F 40
