Standard Jars 3 Fluid Transfer Jars 7 Sealed Jars 8 Jar Accessories 9 7 Jars Fluid Transfer Jars continued Part Number Volume Description Diameter x Height Ports Accept 101300011028 3000 ml Jar with 110 mm 1190 mm x 4254 mm (2) 1/4” OD tube fluid transfer closure 468” x 1675” 101300011038 3000 ml Jar with 110 mm 1190 mm x 4318 mm (2) 3/8” OD tube fluid transfer closure 468” x 1700” 101300011041 3000 ml Jar with 110 mm 1190 mm x 4318 mm (2) 1/2” OD tube fluid transfer closure 468” x 1700” 101300011051 3000 ml Jar with 110 mm 1190 mm x 4254 mm (3) 1/4” OD tube fluid transfer closure 468” x 1675” 101300011052 3000 ml Jar with 110 mm 1190 mm x 4318 mm (3) 3/8” OD tube fluid transfer closure 468” x 1700” 101300011060 3000 ml Jar with 110 mm 1190 mm x 4254 mm (7) 1/4” OD tube fluid transfer closure 468” x 1675” 101300011061 3000 ml Jar with 110 mm 1190 mm x 4318 mm (7) 3/8” OD tube fluid transfer closure 468” x 1700” 101300011062 3000 ml Jar with 110 mm 1190 mm x 4318 mm (2) 1/4” OD tube fluid transfer closure 468” x 1700” (5) 3/8” OD tube 101300011063 3000 ml Jar with 110 mm 1190 mm x 4318 mm (4) 1/4” OD tube fluid transfer closure 468” x 1700” (3) 3/8” OD tube 101400011028 4000 ml Jar with 110 mm 1190 mm x 5812 mm (2) 1/4” OD tube fluid transfer closure 468” x 2288” 101400011038 4000 ml Jar with 110 mm 1190 mm x 5842 mm (2) 3/8” OD tube fluid transfer closure 468” x 2300” 101400011041 4000 ml Jar with 110 mm 1190 mm x 5842 mm (2) 1/2” OD tube fluid transfer closure 468” x 2300” N 101400011051 4000 ml Jar with 110 mm 1190 mm x 5812 mm (3) 1/4” OD tube fluid transfer closure 468” x 2288” 101400011052 4000 ml Jar with 110 mm 1190 mm x 5842 mm (3) 3/8” OD tube fluid transfer closure 468” x 2300” 101400011060 4000 ml Jar with 110 mm 1190 mm x 5812 mm (7) 1/4” OD tube fluid transfer closure 468” x 2288” 101400011061 4000 ml Jar with 110 mm 1190 mm x 5842 mm (7) 3/8” OD tube fluid transfer closure 468” x 2300” 101400011062 4000 ml Jar with 110 mm 1190 mm x 5842 mm (2) 1/4” OD tube fluid transfer closure 468” x 2300” (5) 3/8” OD tube 101400011063 4000 ml Jar with 110 mm 1190 mm x 5842 mm (4) 1/4” OD tube fluid transfer closure 468” x 2300” (3) 3/8” OD tube Phone 9529354100 3000 ml and 4000 ml jars are made by joining jars using an infrared fusion process A small raised bead remains at the outside/inside surfaces of the bonded area N

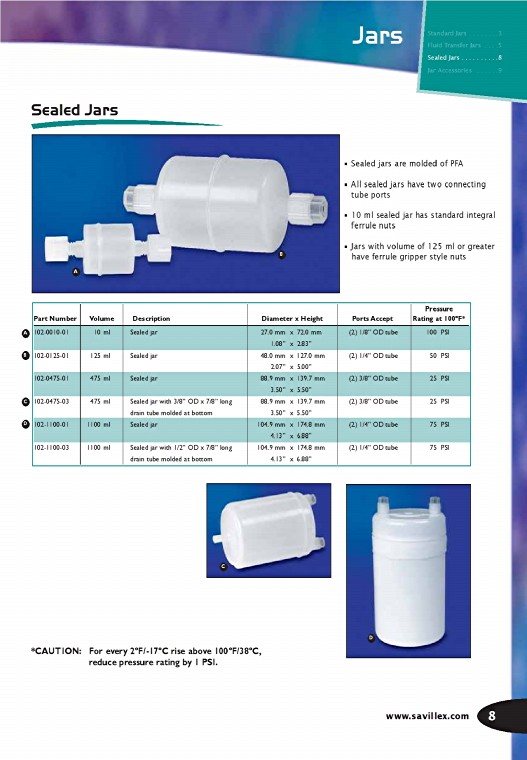

Sealed Jars A Jars Sealed jars are molded of PFA Standard Jars 3 Fluid Transfer Jars 5 Sealed Jars 8 Jar Accessories 9 All sealed jars have two connecting tube ports 10 ml sealed jar has standard integral ferrule nuts Jars with volume of 125 ml or greater have ferrule gripper style nuts Part Number Volume Description Diameter x Height Ports Accept Pressure Rating at 100ºF* A 102001001 10 ml Sealed jar 270 mm x 720 mm 108” x 283” (2) 1/8” OD tube 100 PSI B 102012501 125 ml Sealed jar 480 mm x 1270 mm 207” x 500” (2) 1/4” OD tube 50 PSI 102047501 475 ml Sealed jar 889 mm x 1397 mm 350” x 550” (2) 3/8” OD tube 25 PSI C 102047503 475 ml Sealed jar with 3/8” OD x 7/8” long 889 mm x 1397 mm (2) 3/8” OD tube 25 PSI drain tube molded at bottom 350” x 550” D 102110001 1100 ml Sealed jar 1049 mm x 1748 mm 413” x 688” (2) 1/4” OD tube 75 PSI 102110003 1100 ml Sealed jar with 1/2” OD x 7/8” long 1049 mm x 1748 mm (2) 1/4” OD tube 75 PSI drain tube molded at bottom 413” x 688” *CAUTION: For every 2ºF/17ºC rise above 100ºF/38ºC reduce pressure rating by 1 PSI C B D wwwsavillexcom 8
