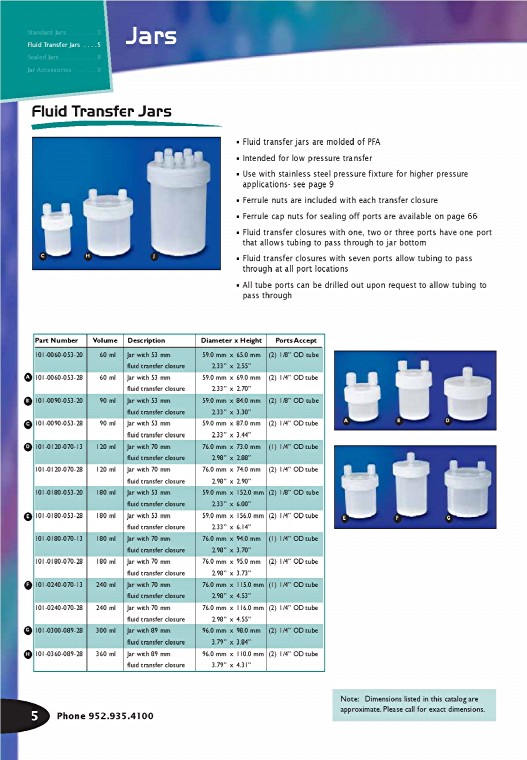

Standard Jars 3 Fluid Transfer Jars 5 Sealed Jars 8 Jar Accessories 9 5 Jars Fluid Transfer Jars C H J Part Number Volume Description Diameter x Height Ports Accept 101006005320 60 ml Jar with 53 mm 590 mm x 650 mm (2) 1/8” OD tube fluid transfer closure 233” x 255” A 101006005328 60 ml Jar with 53 mm 590 mm x 690 mm (2) 1/4” OD tube fluid transfer closure 233” x 270” B 101009005320 90 ml Jar with 53 mm 590 mm x 840 mm (2) 1/8” OD tube fluid transfer closure 233” x 330” C 101009005328 90 ml Jar with 53 mm 590 mm x 870 mm (2) 1/4” OD tube fluid transfer closure 233” x 344” D 101012007013 120 ml Jar with 70 mm 760 mm x 730 mm (1) 1/4” OD tube fluid transfer closure 298” x 288” 101012007028 120 ml Jar with 70 mm 760 mm x 740 mm (2) 1/4” OD tube fluid transfer closure 298” x 290” 101018005320 180 ml Jar with 53 mm 590 mm x 1520 mm (2) 1/8” OD tube fluid transfer closure 233” x 600” E 101018005328 180 ml Jar with 53 mm 590 mm x 1560 mm (2) 1/4” OD tube fluid transfer closure 233” x 614” 101018007013 180 ml Jar with 70 mm 760 mm x 940 mm (1) 1/4” OD tube fluid transfer closure 298” x 370” 101018007028 180 ml Jar with 70 mm 760 mm x 950 mm (2) 1/4” OD tube fluid transfer closure 298” x 373” F 101024007013 240 ml Jar with 70 mm 760 mm x 1150 mm (1) 1/4” OD tube fluid transfer closure 298” x 453” 101024007028 240 ml Jar with 70 mm 760 mm x 1160 mm (2) 1/4” OD tube fluid transfer closure 298” x 455” G 101030008928 300 ml Jar with 89 mm 960 mm x 980 mm (2) 1/4” OD tube fluid transfer closure 379” x 384” H 101036008928 360 ml Jar with 89 mm 960 mm x 1100 mm (2) 1/4” OD tube fluid transfer closure 379” x 431” Phone 9529354100 Fluid transfer jars are molded of PFA Intended for low pressure transfer Use with stainless steel pressure fixture for higher pressure applications see page 9 Ferrule nuts are included with each transfer closure Ferrule cap nuts for sealing off ports are available on page 66 Fluid transfer closures with one two or three ports have one port that allows tubing to pass through to jar bottom Fluid transfer closures with seven ports allow tubing to pass through at all port locations All tube ports can be drilled out upon request to allow tubing to pass through A B D E F G Note: Dimensions listed in this catalog are approximate Please call for exact dimensions

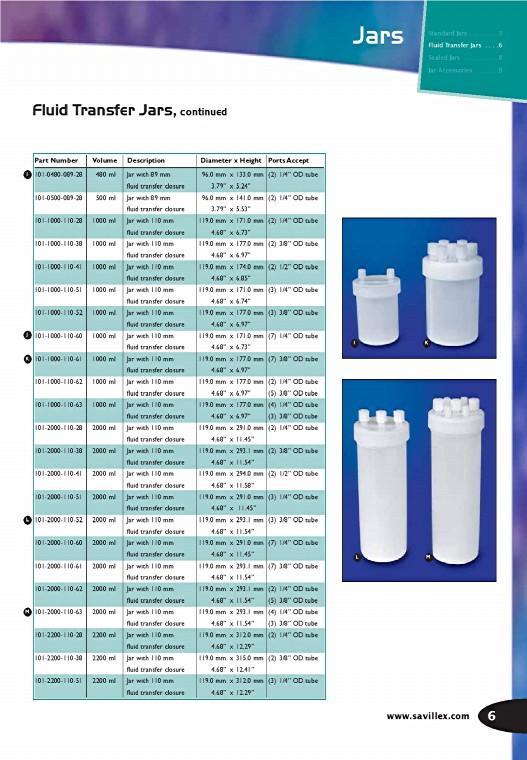

Fluid Transfer Jars continued Part Number Volume Description Diameter x Height Ports Accept I 101048008928 480 ml Jar with 89 mm 960 mm x 1330 mm (2) 1/4” OD tube fluid transfer closure 379” x 524” 101050008928 500 ml Jar with 89 mm 960 mm x 1410 mm (2) 1/4” OD tube fluid transfer closure 379” x 553” 101100011028 1000 ml Jar with 110 mm 1190 mm x 1710 mm (2) 1/4” OD tube fluid transfer closure 468” x 673” 101100011038 1000 ml Jar with 110 mm 1190 mm x 1770 mm (2) 3/8” OD tube fluid transfer closure 468” x 697” 101100011041 1000 ml Jar with 110 mm 1190 mm x 1740 mm (2) 1/2” OD tube fluid transfer closure 468” x 685” 101100011051 1000 ml Jar with 110 mm 1190 mm x 1710 mm (3) 1/4” OD tube fluid transfer closure 468” x 674” 101100011052 1000 ml Jar with 110 mm 1190 mm x 1770 mm (3) 3/8” OD tube fluid transfer closure 468” x 697” J 101100011060 1000 ml Jar with 110 mm 1190 mm x 1710 mm (7) 1/4” OD tube fluid transfer closure 468” x 673” K 101100011061 1000 ml Jar with 110 mm 1190 mm x 1770 mm (7) 3/8” OD tube fluid transfer closure 468” x 697” 101100011062 1000 ml Jar with 110 mm 1190 mm x 1770 mm (2) 1/4” OD tube fluid transfer closure 468” x 697” (5) 3/8” OD tube 101100011063 1000 ml Jar with 110 mm 1190 mm x 1770 mm (4) 1/4” OD tube fluid transfer closure 468” x 697” (3) 3/8” OD tube 101200011028 2000 ml Jar with 110 mm 1190 mm x 2910 mm (2) 1/4” OD tube fluid transfer closure 468” x 1145” 101200011038 2000 ml Jar with 110 mm 1190 mm x 2931 mm (2) 3/8” OD tube fluid transfer closure 468” x 1154” 101200011041 2000 ml Jar with 110 mm 1190 mm x 2940 mm (2) 1/2” OD tube fluid transfer closure 468” x 1158” 101200011051 2000 ml Jar with 110 mm 1190 mm x 2910 mm (3) 1/4” OD tube fluid transfer closure 468” x 1145” L 101200011052 2000 ml Jar with 110 mm 1190 mm x 2931 mm (3) 3/8” OD tube fluid transfer closure 468” x 1154” 101200011060 2000 ml Jar with 110 mm 1190 mm x 2910 mm (7) 1/4” OD tube fluid transfer closure 468” x 1145” 101200011061 2000 ml Jar with 110 mm 1190 mm x 2931 mm (7) 3/8” OD tube fluid transfer closure 468” x 1154” 101200011062 2000 ml Jar with 110 mm 1190 mm x 2931 mm (2) 1/4” OD tube fluid transfer closure 468” x 1154” (5) 3/8” OD tube M 101200011063 2000 ml Jar with 110 mm 1190 mm x 2931 mm (4) 1/4” OD tube fluid transfer closure 468” x 1154” (3) 3/8” OD tube 101220011028 2200 ml Jar with 110 mm 1190 mm x 3120 mm (2) 1/4” OD tube fluid transfer closure 468” x 1229” 101220011038 2200 ml Jar with 110 mm 1190 mm x 3150 mm (2) 3/8” OD tube fluid transfer closure 468” x 1241” 101220011051 2200 ml Jar with 110 mm 1190 mm x 3120 mm (3) 1/4” OD tube fluid transfer closure 468” x 1229” Jars I K L M Standard Jars 3 Fluid Transfer Jars 6 Sealed Jars 8 Jar Accessories 9 wwwsavillexcom 6
