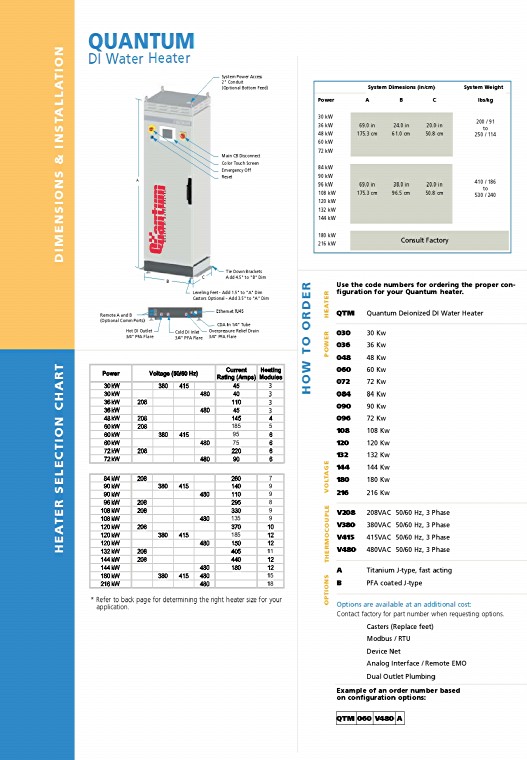

DIMENSIONS & INSTALLATION HEATER SELECTION CHART QUANTUM DI Water Heater A Remote A and B (Optional Comm Ports) Hot DI Outlet 3/4" PFA Flare B C Cold DI Inlet 3/4" PFA Flare System Power Access 2" Conduit (Optional Bottom Feed) Main CB Disconnect Color Touch Screen Emergency Off Reset Tie Down Brackets Add 45" to "B" Dim Leveling Feet Add 15" to "A" Dim Castors Optional Add 35" to "A" Dim Ethernet RJ45 CDA In 1/4" Tube Overpressure Relief Drain 3/4" PFA Flare 3 3 3 3 185 5 95 75 7 9 9 8 9 135 9 185 11 15 18 * Refer to back page for determining the right heater size for your application HOW TO ORDER Power 30 kW 36 kW 48 kW 60 kW 72 kW 84 kW 90 kW 96 kW 108 kW 120 kW 132 kW 144 kW 180 kW 216 kW POWER HEATER VOLTAGE OPTIONS THERMOCOUPLE A 690 in 1753 cm 690 in 1753 cm System Dimesions (in/cm) System Weight B 240 in 610 cm 380 in 965 cm C 200 in 508 cm 200 in 508 cm Consult Factory lbs/kg 200 / 91 to 250 / 114 410 / 186 to 530 / 240 Use the code numbers for ordering the proper configuration for your Quantum heater QTM Quantum Deionized DI Water Heater 030 30 Kw 036 36 Kw 048 48 Kw 060 60 Kw 072 72 Kw 084 84 Kw 090 90 Kw 096 72 Kw 108 108 Kw 120 120 Kw 132 132 Kw 144 144 Kw 180 180 Kw 216 216 Kw V208 208VAC 50/60 Hz 3 Phase V380 380VAC 50/60 Hz 3 Phase V415 415VAC 50/60 Hz 3 Phase V480 480VAC 50/60 Hz 3 Phase A Titanium Jtype fast acting B PFA coated Jtype Options are available at an additional cost: Contact factory for part number when requesting options Casters (Replace feet) Modbus / RTU Device Net Analog Interface / Remote EMO Dual Outlet Plumbing Example of an order number based on configuration options: QTM 060 V480 A
