CYCLE PROBE ENDOFSTROKE PROBE The pump cycle probe uses a fiber optic signal to register the movement of the shuttle spool It is installed in the shuttle bore replacing the standard shuttle valve cap The cycle probe can be used to monitor pump cycle rate for high/low cycle alarms total cycles for maintenance purposes or to approximate flow rate It is nonintrusive nonmetallic and nonelectrical providing safe cycle detection in any application DPC1 110/610 DPC2 960/Maxim R DPC10 610NM DPC11 620 Note: Requires one probe per pump plus use of one fiber optic amplifier Accessories CYCLE PROBE DPC2 960 SENSORS DPS01 (SOURCING) DPS02 (SINKING) OUTPUT SIGNAL Amplifier DPS01 (Sourcing PNP) DPS02 (Sinking NPN) Cycle Counter M5 (Includes one amplifier) STANDARD LENGTH 25 FT Endofstroke probes provide cycle counting and pump stroke control versatility for your application A single probe can be installed and monitored as a means of cycle counting on Maxim E and 110/610 OSC pump models This is accomplished by detecting the end position of the diaphragm stroke Two probes may be used to operate an electronic external air control valve This setup allows complete control and monitoring of pump speed and cycle counts It also provides a dropin replacement option for competitors pumps that use external control valves REGULATED AIR DPC6 110/610 OSC 100°C DPC7 Maxim E 100°C DPC12 Maxim E High Temp 180°C Accessories OSCILLATOR SENSORS (2) LEAK (1) CYCLE DPS01 (SOURCING) DPS02 (SINKING) OUTPUT SIGNAL Amplifier DPS01 (Sourcing PNP) DPS02 (Sinking NPN) Cycle Counter M5 (Includes one amplifier) Leak Monitor M10 (Includes two amplifiers) CYCLE PROBE DPC7 LEAK PROBE (BOTH ENDS OF PUMP) STANDARD LENGTH: 25 FT

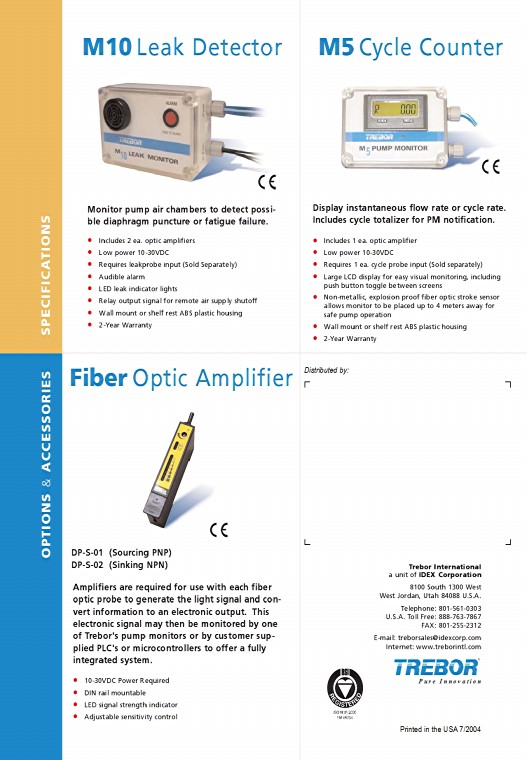

SPECIFICATIONS OPTIONS & ACCESSORIES M10 Leak Detector Monitor pump air chambers to detect possible diaphragm puncture or fatigue failure Includes 2 ea optic amplifiers Low power 1030VDC Requires leakprobe input (Sold Separately) Audible alarm LED leak indicator lights Relay output signal for remote air supply shutoff Wall mount or shelf rest ABS plastic housing 2Year Warranty Fiber Optic Amplifier DPS01 (Sourcing PNP) DPS02 (Sinking NPN) Amplifiers are required for use with each fiber optic probe to generate the light signal and convert information to an electronic output This electronic signal may then be monitored by one of Trebors pump monitors or by customer supplied PLCs or microcontrollers to offer a fully integrated system 1030VDC Power Required DIN rail mountable LED signal strength indicator Adjustable sensitivity control D D M5 Cycle Counter Display instantaneous flow rate or cycle rate Includes cycle totalizer for PM notification Includes 1 ea optic amplifier Low power 1030VDC Requires 1 ea cycle probe input (Sold separately) Large LCD display for easy visual monitoring including push button toggle between screens Nonmetallic explosion proof fiber optic stroke sensor allows monitor to be placed up to 4 meters away for safe pump operation Wall mount or shelf rest ABS plastic housing 2Year Warranty Distributed by: C Trebor International a unit of IDEX Corporation 8100 South 1300 West West Jordan Utah 84088 USA Telephone: 8015610303 USA Toll Free: 8887637867 FAX: 8012552312 Email: treborsales@idexcorpcom Internet: wwwtreborintlcom tPure Innovation Printed in the USA 7/2004 D
