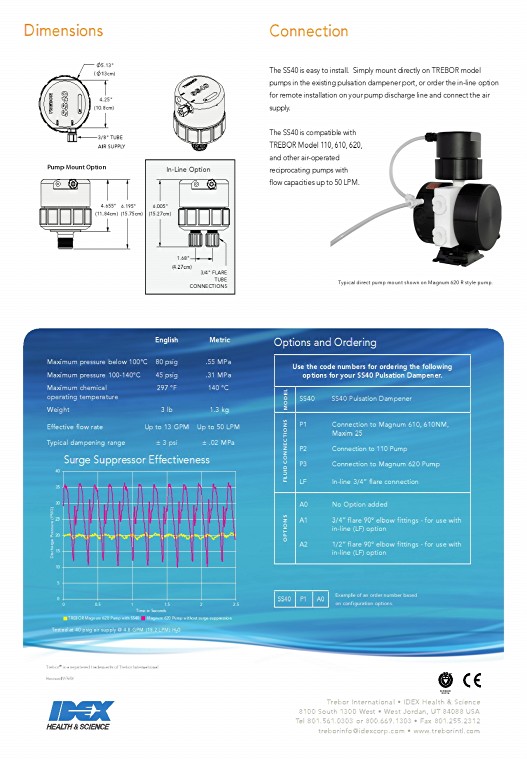

Dimensions Trebor ® is a registered trademarks of Trebor International Revised 9/5/07 English Metric Maximum pressure below 100°C 80 psig 55 MPa Maximum pressure 100140°C 45 psig 31 MPa Maximum chemical 297 °F 140 °C operating temperature Weight 3 lb 13 kg Effective flow rate Up to 13 GPM Up to 50 LPM Typical dampening range ± 3 psi ± 02 MPa Discharge Pressure (PSIG) 40 35 30 25 20 15 10 5 0 513" 425" (108cm) Pump Mount Option ( 13cm) 3/8" TUBE AIR SUPPLY 4655" 6195" (1184cm) (1575cm) 6005" (1527cm) Surge Suppressor Effectiveness 0 05 1 15 2 25 Time in Seconds TREBOR Magnum 620 Pump with SS40 Magnum 620 Pump without surge suppression Tested at 40 psig air supply @ 48 GPM (182 LPM) H 20 InLine Option 168" (427cm) 3/4" FLARE TUBE CONNECTIONS Connection The SS40 is easy to install Simply mount directly on TREBOR model pumps in the existing pulsation dampener port or order the inline option for remote installation on your pump discharge line and connect the air supply The SS40 is compatible with TREBOR Model 110 610 620 and other airoperated reciprocating pumps with flow capacities up to 50 LPM Options and Ordering MODEL FLUID CONNECTIONS OPTIONS Use the code numbers for ordering the following options for your SS40 Pulsation Dampener SS40 SS40 Pulsation Dampener P1 Connection to Magnum 610 610NM Maxim 25 P2 Connection to 110 Pump P3 Connection to Magnum 620 Pump LF Inline 3/4” flare connection A0 No Option added A1 3/4” flare 90° elbow fittings for use with inline (LF) option A2 1/2” flare 90° elbow fittings for use with inline (LF) option SS40 P1 A0 Typical direct pump mount shown on Magnum 620 R style pump Example of an order number based on configuration options ISO 9000:2001 FM 69754 Trebor International IDEX Health & Science 8100 South 1300 West West Jordan UT 84088 USA Tel 8015610303 or 8006691303 Fax 8012552312 treborinfo@idexcorpcom wwwtreborintlcom

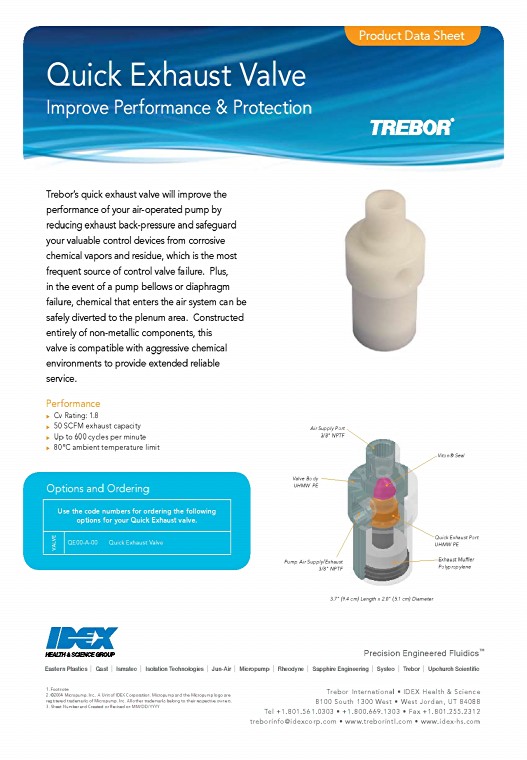

Quick Exhaust Valve Improve Performance & Protection Trebor’s quick exhaust valve will improve the performance of your airoperated pump by reducing exhaust backpressure and safeguard your valuable control devices from corrosive chemical vapors and residue which is the most frequent source of control valve failure Plus in the event of a pump bellows or diaphragm failure chemical that enters the air system can be safely diverted to the plenum area Constructed entirely of nonmetallic components this valve is compatible with aggressive chemical environments to provide extended reliable service Performance Cv Rating: 18 50 SCFM exhaust capacity Up to 600 cycles per minute 80ºC ambient temperature limit Options and Ordering VALVE Use the code numbers for ordering the following options for your Quick Exhaust valve QE00A00 Quick Exhaust Valve 1 Footnote 2 ⓒ2004 Micropump Inc A Unit of IDEX Corporation Micropump and the Micropump logo are registered trademarks of Micropump Inc All other trademarks belong to their respective owners 3 Sheet Number and Created or Revised on MM/DD/YYYY Valve Body UHMW PE Air Supply Port 3/8" NPTF Pump Air Supply/Exhaust 3/8" NPTF Product Data Sheet 37" (94 cm) Length x 20" (51 cm) Diameter Viton® Seal Quick Exhaust Port UHMW PE Exhaust Muffler Polypropylene Precision Engineered Fluidics ™ Eastern Plastics I Gast I Ismatec I Isolation Technologies I JunAir I Micropump I Rheodyne I Sapphire Engineering I Systec I Trebor I Upchurch Scientific Trebor International IDEX Health & Science 8100 South 1300 West West Jordan UT 84088 Tel +18015610303 +18006691303 Fax +18012552312 treborinfo@idexcorpcom wwwtreborintlcom wwwidexhscom
