Dimensions English Metric Max pressure below 100°C 80 psig 55 MPa Max pressure 100180°C 45 psig 31 MPa Maximum chemical operating temperature 356°F 180 °C Weight 71 lb 32 kg Effective flow rate < 25 GPM < 95 LPM Typical dampening range ± 3 psig ± 02 MPa Discharge Pressure (PSIG) 35 30 25 20 15 10 5 0 5 Tested at 80 psig air supply @ 137 GPM (518 LPM) H 20 Trebor ® is a registered trademarks of Trebor International Revised 8/21/07 800 (2032cm) AIR BLEED 1/4" NPT 150 (381cm) AIR SUPPLY 1/4" NPT Inline Dimensions AIR SUPPLY CONNECTION FLUID PORT FITTINGS (INCLUDED WITH TEE OPTION) 035 (089cm) 3/8 " TUBE REMOTE EXHAUST 800 (2032) 420 (1067) 275 (699) CONNECTION 1/8" TUBE 711 (1806) 228 (579) 121 (307) 375 (953) Pulsation Dampener Effectiveness 10 0 05 1 15 2 25 3 Time (sec) 543 (1380cm) SPECIFY PUMP MODEL FOR CORRECT ADAPTER M50E with Model SS95 M50E without pulsation dampener CL 447 (1135) IN (CM) MTD0376 206 (523) Operating Principle Air is supplied to the SS95 Pulsation Dampener equal to or greater than the pump air supply pressure This pressurizes the air chamber (shown in blue) that is isolated from the chemical chamber (shown in red) by the PTFE diaphragm With each pump stroke the chemical pulsations are dampened by the pressurized air chamber bleeding off small amounts of air with each pulsation The air chamber periodically recharges itself when enough air has bled off to allow contact with the pilot valve With only a few periodic moving parts the SS95 will typically provide more than 200 million pump cycles of service between maintenance intervals Options and Ordering MODEL FLUID CONNECTIONS OPTIONS Use the code numbers for ordering the following options for your SS95 Pulsation Dampener SS95 SS95 Pulsation Dampener P1 Connection to Magnum 610 610NM Maxim Series P2 Connection to Mega 960 L1 Inline 1" Flare L2 Inline 3/4" Flare L3 Inline 3/4" Tube Stubout LF Inline 3/4" Flare connection A0 No Option added SS95 P1 A0 Fluid Air Example of an order number based on configuration options ISO 9000:2001 FM 69754 Trebor International IDEX Health & Science 8100 South 1300 West West Jordan UT 84088 USA Tel 8015610303 or 8006691303 Fax 8012552312 treborinfo@idexcorpcom wwwtreborintlcom

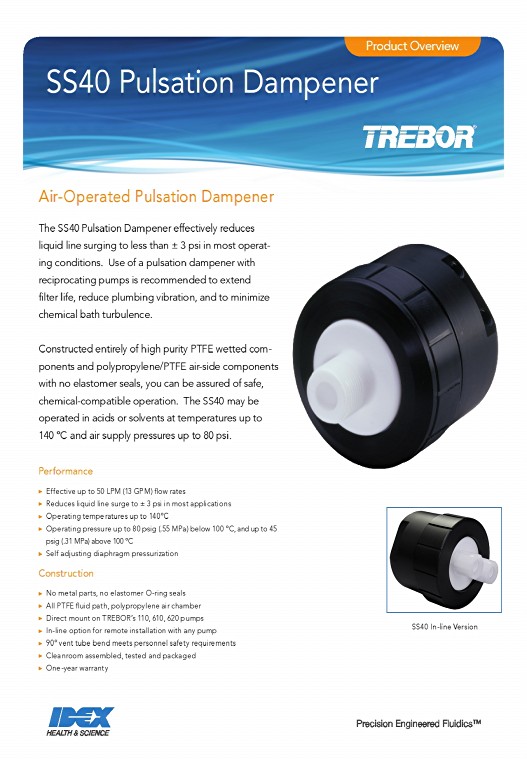

SS40 Pulsation Dampener AirOperated Pulsation Dampener The SS40 Pulsation Dampener effectively reduces liquid line surging to less than ± 3 psi in most operating conditions Use of a pulsation dampener with reciprocating pumps is recommended to extend filter life reduce plumbing vibration and to minimize chemical bath turbulence Constructed entirely of high purity PTFE wetted components and polypropylene/PTFE airside components with no elastomer seals you can be assured of safe chemicalcompatible operation The SS40 may be operated in acids or solvents at temperatures up to 140 °C and air supply pressures up to 80 psi Performance Effective up to 50 LPM (13 GPM) flow rates Reduces liquid line surge to ± 3 psi in most applications Operating temperatures up to 140°C Operating pressure up to 80 psig (55 MPa) below 100 °C and up to 45 psig (31 MPa) above 100 °C Self adjusting diaphragm pressurization Construction No metal parts no elastomer Oring seals All PTFE fluid path polypropylene air chamber Direct mount on TREBOR’s 110 610 620 pumps Inline option for remote installation with any pump 90° vent tube bend meets personnel safety requirements Cleanroom assembled tested and packaged Oneyear warranty Product Overview ® SS40 Inline Version
