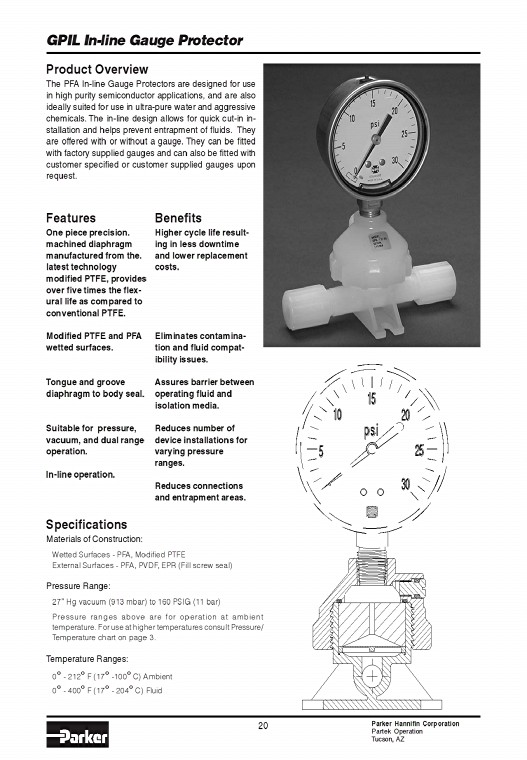

GPIL Inline Gauge Protector Product Overview The PFA Inline Gauge Protectors are designed for use in high purity semiconductor applications and are also ideally suited for use in ultrapure water and aggressive chemicals The inline design allows for quick cutin installation and helps prevent entrapment of fluids They are offered with or without a gauge They can be fitted with factory supplied gauges and can also be fitted with customer specified or customer supplied gauges upon request Features One piece precision machined diaphragm manufactured from the latest technology modified PTFE provides over five times the flexural life as compared to conventional PTFE Modified PTFE and PFA wetted surfaces Tongue and groove diaphragm to body seal Suitable for pressure vacuum and dual range operation Inline operation Specifications Materials of Construction: Benefits Higher cycle life resulting in less downtime and lower replacement costs Eliminates contamination and fluid compatibility issues Assures barrier between operating fluid and isolation media Reduces number of device installations for varying pressure ranges Reduces connections and entrapment areas Wetted Surfaces PFA Modified PTFE External Surfaces PFA PVDF EPR (Fill screw seal) Pressure Range: 27” Hg vacuum (913 mbar) to 160 PSIG (11 bar) Pressure ranges above are for operation at ambient temperature For use at higher temperatures consult Pressure/ Temperature chart on page 3 Temperature Ranges: 0° 212° F (17° 100° C) Ambient 0° 400° F (17° 204° C) Fluid 20 5 15 10 ps i 20 30 25 Parker Hannifin Corporation Partek Operation Tucson AZ

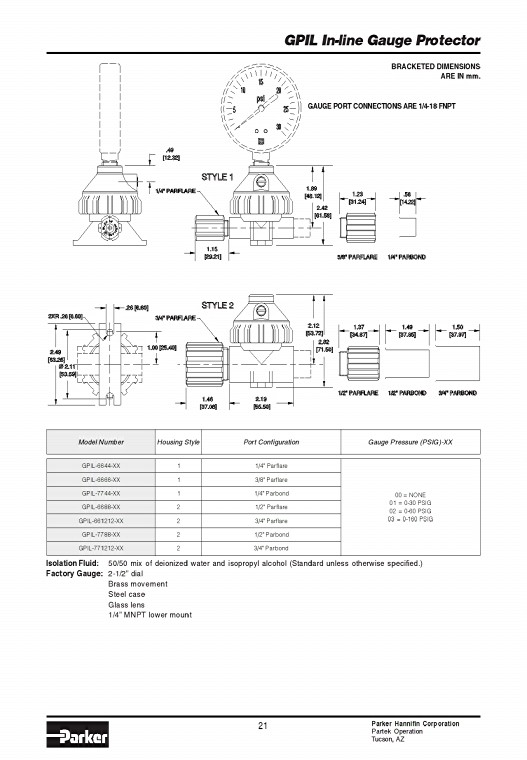

2XR 26 [660] 249 [6326] Ø 211 [5359] PP DD VV 1/4" FF 1/4" EE RR AA PP AAR R L L FF 49 [1232] 1/4" PARFLARE 26 [660] 3/4" PARFLARE 100 [2540] 5 STYLE 1 115 [2921] STYLE 2 146 [3708] 10 15 psi 219 [5550] 21 20 30 GPIL Inline Gauge Protector 25 189 [4812] 242 [6158] 212 [5372] 282 [7150] 123 [3124] 3/8" PARFLARE 137 [3487] 1/2" PARFLARE BRACKETED DIMENSIONS ARE IN mm GAUGE PORT CONNECTIONS ARE 1/418 FNPT 56 [1422] 1/4" PARBOND 149 [3785] 1/2" PARBOND Model Number Housing Style Port Configuration Gauge Pressure ( PSIG) XX GPIL6644XX 1 1/ 4" Parflare GPIL6666XX 1 3/ 8" Parflare GPIL7744XX 1 1/ 4" Parbond GPIL6688XX 2 1/ 2" Parflare GPIL661212XX 2 3/ 4" Parflare GPIL7788XX 2 1/ 2" Parbond GPIL771212XX 2 3/ 4" Parbond 00 = NONE 01 = 030 PSIG 02 = 060 PSIG 03 = 0160 PSIG Isolation Fluid: 50/50 mix of deionized water and isopropyl alcohol (Standard unless otherwise specified) Factory Gauge: 21/2” dial Brass movement Steel case Glass lens 1/4” MNPT lower mount 150 [3797] 3/4" PARBOND Parker Hannifin Corporation Partek Operation Tucson AZ
