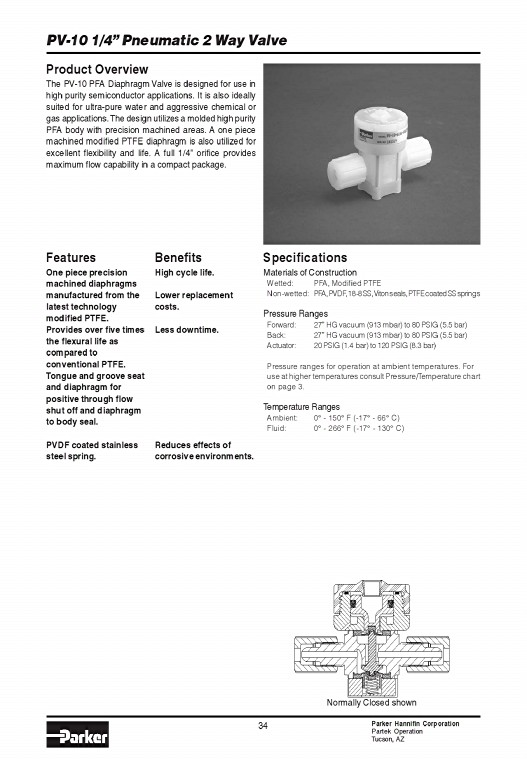

PV10 1/4” Pneumatic 2 Way Valve Product Overview The PV10 PFA Diaphragm Valve is designed for use in high purity semiconductor applications It is also ideally suited for ultrapure water and aggressive chemical or gas applications The design utilizes a molded high purity PFA body with precision machined areas A one piece machined modified PTFE diaphragm is also utilized for excellent flexibility and life A full 1/4” orifice provides maximum flow capability in a compact package Features One piece precision machined diaphragms manufactured from the latest technology modified PTFE Provides over five times the flexural life as compared to conventional PTFE Tongue and groove seat and diaphragm for positive through flow shut off and diaphragm to body seal PVDF coated stainless steel spring Benefits High cycle life Lower replacement costs Less downtime Reduces effects of corrosive environments Specifications Materials of Construction Wetted: PFA Modified PTFE Nonwetted: PFA PVDF 188 SS Viton seals PTFE coated SS springs 34 Pressure Ranges Forward: 27” HG vacuum (913 mbar) to 80 PSIG (55 bar) Back: 27” HG vacuum (913 mbar) to 80 PSIG (55 bar) Actuator: 20 PSIG (14 bar) to 120 PSIG (83 bar) Pressure ranges for operation at ambient temperatures For use at higher temperatures consult Pressure/Temperature chart on page 3 Temperature Ranges Ambient: 0° 150° F (17° 66° C) Fluid: 0° 266° F (17° 130° C) Normally Closed shown Parker Hannifin Corporation Partek Operation Tucson AZ

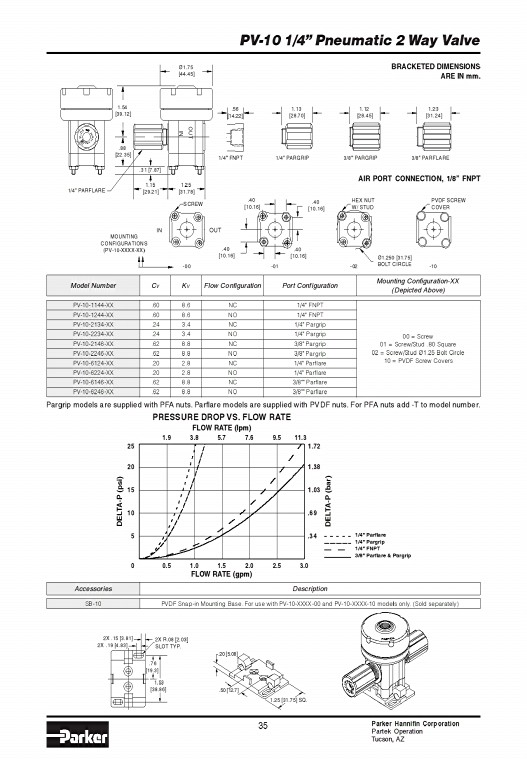

P D V 1/4" F 1/4" RE 1/4" PARFLARE A P A F L R 154 [3912] 88 [2235] MOUNTING CONFIGURATIONS (PV10XXXXXX) 31 [787] 115 [2921] Ø175 [4445] IN 00 OUT 125 [3178] SCREW IN OUT 56 [1422] 1/4" FNPT 40 [1016] PV10 1/4” Pneumatic 2 Way Valve 40 [1016] 35 01 113 [2870] 1/4" PARGRIP 40 [1016] 40 [1016] Model Number CVKV Flow Configuration Port Configuration PV101144XX 60 8 6 NC 1/ 4" FNPT PV101244XX 60 8 6 NO 1/ 4" FNPT PV102134XX 24 3 4 NC 1/ 4" Pargrip PV102234XX 24 3 4 NO 1/ 4" Pargrip PV102146XX 62 8 8 NC 3/ 8" Pargrip PV102246XX 62 8 8 NO 3/ 8" Pargrip PV106124XX 20 2 8 NC 1/ 4" Parflare PV106224XX 20 2 8 NO 1/ 4" Parflare PV106146XX 62 8 8 NC 3/ 8" " Parflare PV106246XX 62 8 8 NO 3/ 8" " Parflare 112 [2845] 3/8" PARGRIP HEX NUT W/ STUD 02 BRACKETED DIMENSIONS ARE IN mm Ø1250 [3175] BOLT CIRCLE 123 [3124] 3/8" PARFLARE AIR PORT CONNECTION 1/8” FNPT PVDF SCREW COVER 10 Mounting ConfigurationXX ( Depicted Above) 00 = Screw 01 = Screw/ Stud 80 Square 02 = Screw/ Stud Ø1 25 Bolt Circle 10 = PVDF Screw Covers Pargrip models are supplied with PFA nuts Parflare models are supplied with PVDF nuts For PFA nuts add T to model number PRESSURE DROP VS FLOW RATE FLOW RATE (lpm) 19 38 57 76 95 113 25 172 DELTAP (psi) 20 15 10 5 0 2X 15 [381] 2X R08 [203] 2X 19 [483] SLOT TYP 76 [193] 153 [3886] 05 10 15 20 25 30 FLOW RATE (gpm) Accessories Description 20 [508] 50 [127] 125 [3175] SQ 138 103 69 34 DELTAP (bar) 1/4" Parflare 1/4" Pargrip 1/4" FNPT 3/8" Parflare & Pargrip S B10 PVDF Snapin Mounting Base For use with PV10XXXX00 and PV10XXXX10 models only ( Sold separately) Parker Hannifin Corporation Partek Operation Tucson AZ
