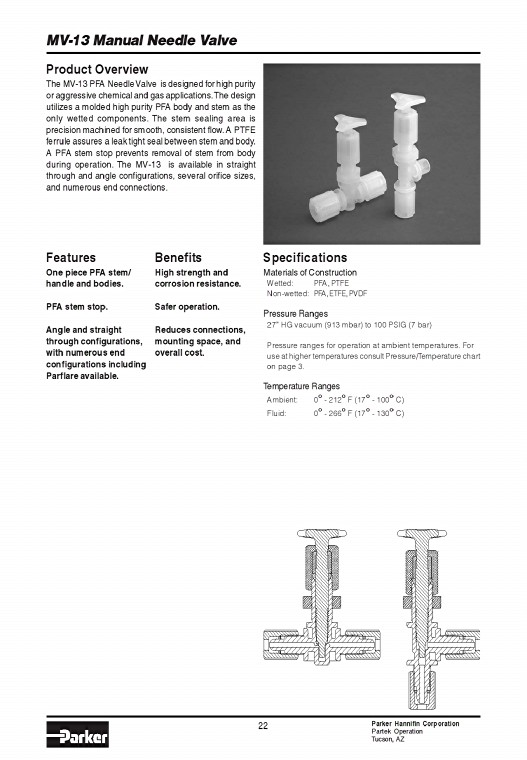

MV13 Manual Needle Valve Product Overview The MV13 PFA Needle Valve is designed for high purity or aggressive chemical and gas applications The design utilizes a molded high purity PFA body and stem as the only wetted components The stem sealing area is precision machined for smooth consistent flow A PTFE ferrule assures a leak tight seal between stem and body A PFA stem stop prevents removal of stem from body during operation The MV13 is available in straight through and angle configurations several orifice sizes and numerous end connections Features One piece PFA stem/ handle and bodies PFA stem stop Angle and straight through configurations with numerous end configurations including Parflare available Benefits High strength and corrosion resistance Safer operation Reduces connections mounting space and overall cost Specifications Materials of Construction Wetted: PFA PTFE Nonwetted: PFA ETFE PVDF 22 Pressure Ranges 27” HG vacuum (913 mbar) to 100 PSIG (7 bar) Pressure ranges for operation at ambient temperatures For use at higher temperatures consult Pressure/Temperature chart on page 3 Temperature Ranges Ambient: 0° 212° F (17° 100° C) Fluid: 0° 266° F (17° 130° C) Parker Hannifin Corporation Partek Operation Tucson AZ

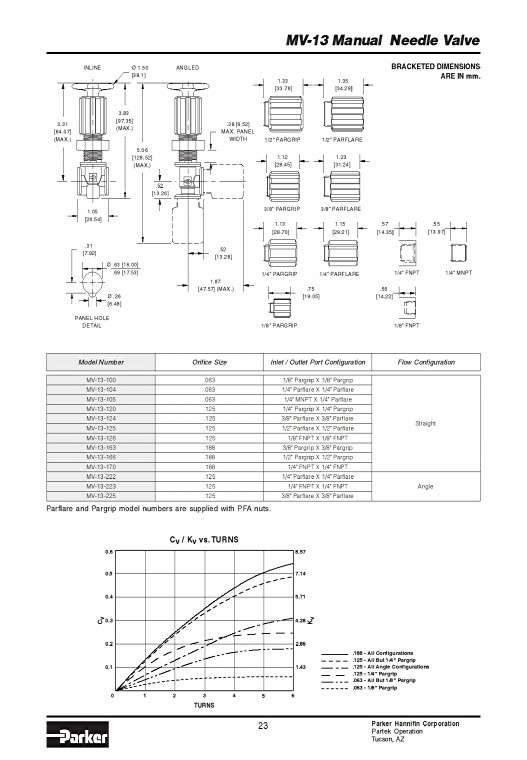

331 [8407] (MAX) INLINE Ø 150 [381] ANGLED 105 [2654] 31 [792] PANEL HOLE DETAIL Ø 63 [1600] 69 [1753] Ø 26 [648] 383 [9735] (MAX) 506 [12852] (MAX) 52 [1326] 38 [952] MAX PANEL WIDTH 52 [1328] 187 [4757] (MAX) Parflare and Pargrip model numbers are supplied with PFA nuts 23 133 [3376] 1/2" PARGRIP 112 [2845] 3/8" PARGRIP 113 [2870] 1/4" PARGRIP 1/8" PARGRIP MV13 Manual Needle Valve 75 [1905] 135 [3429] 1/2" PARFLARE 123 [3124] 3/8" PARFLARE 115 [2921] 1/4" PARFLARE 57 [1435] 56 [1422] 1/4" FNPT 1/8" FNPT 55 [1397] Model Number Orifice Size Inlet / Outlet Port Configuration Flow Configuration MV13100 063 1/ 8" Pargrip X 1/ 8" Pargrip MV13104 063 1/ 4" Parflare X 1/ 4" Parflare MV13105 063 1/ 4" MNPT X 1/ 4" Parflare MV13120 125 1/ 4" Pargrip X 1/ 4" Pargrip MV13124 125 3/ 8" Parflare X 3/ 8" Parflare MV13125 125 1/ 2" Parflare X 1/ 2" Parflare MV13126 125 1/ 8" FNPT X 1/ 8" FNPT MV13163 188 3/ 8" Pargrip X 3/ 8" Pargrip MV13166 188 1/ 2" Pargrip X 1/ 2" Pargrip MV13170 188 1/ 4" FNPT X 1/ 4" FNPT MV13222 125 1/ 4" Parflare X 1/ 4" Parflare MV13223 125 1/ 4" FNPT X 1/ 4" FNPT MV13225 125 3/ 8" Parflare X 3/ 8" Parflare C v 06 05 04 03 02 01 0 1 Cv / Kv vs TURNS 2 3 TURNS 4 5 6 857 714 571 428 286 143 K v Straight Angle 188 All Configurations 125 All But 1/4" Pargrip 125 All Angle Configurations 125 1/4" Pargrip 063 All But 1/8" Pargrip 063 1/8" Pargrip BRACKETED DIMENSIONS ARE IN mm 1/4" MNPT Parker Hannifin Corporation Partek Operation Tucson AZ
