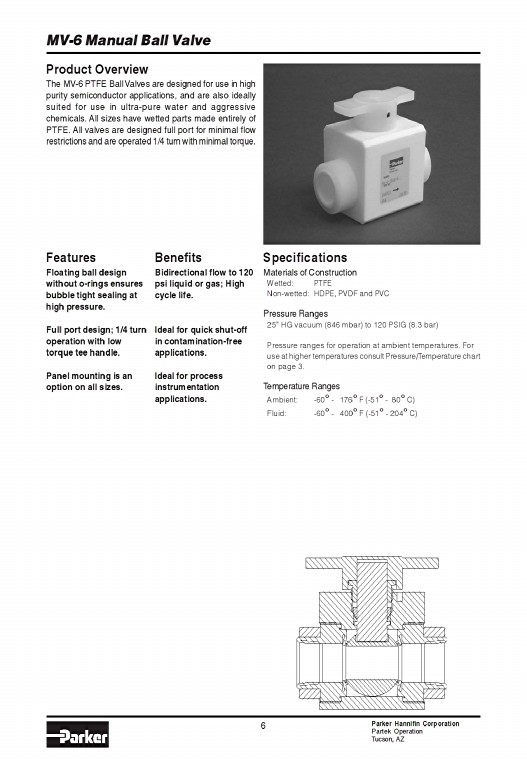

MV6 Manual Ball Valve Product Overview The MV6 PTFE Ball Valves are designed for use in high purity semiconductor applications and are also ideally suited for use in ultrapure water and aggressive chemicals All sizes have wetted parts made entirely of PTFE All valves are designed full port for minimal flow restrictions and are operated 1/4 turn with minimal torque Features Floating ball design without orings ensures bubble tight sealing at high pressure Full port design; 1/4 turn operation with low torque tee handle Panel mounting is an option on all sizes Benefits Bidirectional flow to 120 psi liquid or gas; High cycle life Ideal for quick shutoff in contaminationfree applications Ideal for process instrumentation applications Specifications Materials of Construction Wetted: PTFE Nonwetted: HDPE PVDF and PVC Pressure Ranges 25” HG vacuum (846 mbar) to 120 PSIG (83 bar) 6 Pressure ranges for operation at ambient temperatures For use at higher temperatures consult Pressure/Temperature chart on page 3 Temperature Ranges Ambient: 60° 176° F (51° 80° C) Fluid: 60° 400° F (51° 204° C) Parker Hannifin Corporation Partek Operation Tucson AZ

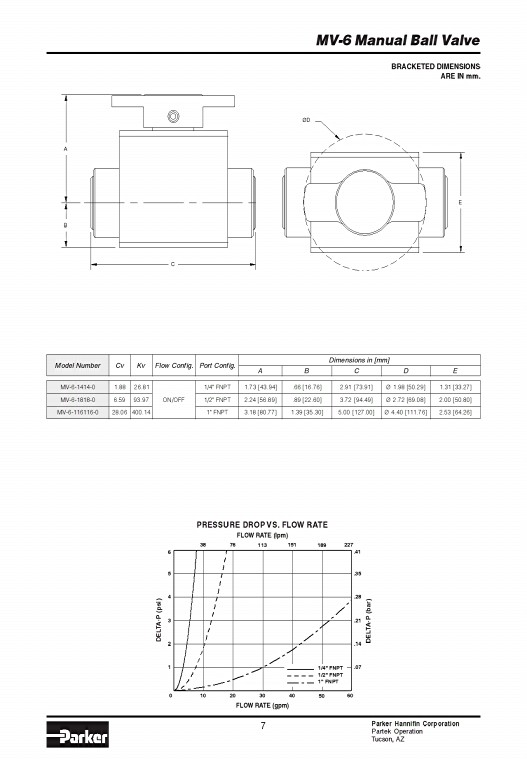

A B Model Number Cv K v F low Config Port Config MV614140 1 88 26 81 DELTAP (psi) 6 5 4 3 2 1 C 0 10 7 ØD PRESSURE DROP VS FLOW RATE FLOW RATE (lpm) 38 76 113 151 189 227 41 20 30 FLOW RATE (gpm) 40 MV6 Manual Ball Valve 1/4" FNPT 1/2" FNPT 1" FNPT 50 60 35 28 21 14 07 DELTAP (bar) BRACKETED DIMENSIONS ARE IN mm A B Dimensions in [ mm] C D E 1 / 4" FNPT 1 73 [ 43 94] 66 [ 16 76] 2 91 [ 73 91] Ø 1 98 [ 50 29] 1 31 [ 33 27] MV618180 6 59 93 97 ON/ OFF 1 / 2" FNPT 2 24 [ 56 89] 89 [ 22 60] 3 72 [ 94 49] Ø 2 72 [ 69 08] 2 00 [ 50 80] MV61161160 28 06 400 14 1 " FNPT 3 18 [ 80 77] 1 39 [ 35 30] 5 00 [ 127 00] Ø 4 40 [ 111 76] 2 53 [ 64 26] Parker Hannifin Corporation Partek Operation Tucson AZ E
