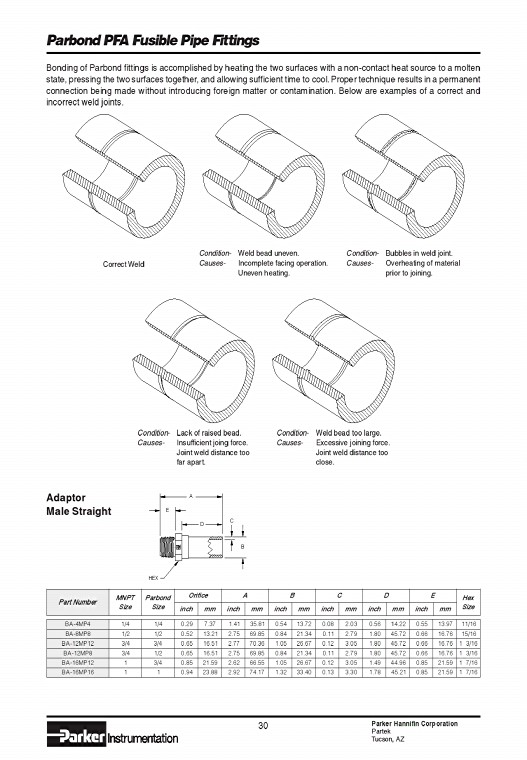

Parbond PFA Fusible Pipe Fi tings Bonding of Parbond fittings is accomplished by heating the two surfaces with a noncontact heat source to a molten state pressing the two surfaces together and allowing sufficient time to cool Proper technique results in a permanent connection being made without introducing foreign matter or contamination Below are examples of a correct and incorrect weld joints Adaptor Male Straight Part Number Correct Weld MNPT Size Condition Lack of raised bead Causes Insufficient joing force Joint weld distance too far apart HEX E Parbond Size A Condition Weld bead uneven Causes Incomplete facing operation Uneven heating D C B Orifice A B C D E Hex inch mm inch mm inch mm inch mm inch mm inch mm Size BA4MP4 1/ 4 1/ 4 0 29 7 37 1 41 35 81 0 54 13 72 0 08 2 03 0 56 14 22 0 55 13 97 11/ 16 BA8MP8 1/ 2 1/ 2 0 52 13 21 2 75 69 85 0 84 21 34 0 11 2 79 1 80 45 72 0 66 16 76 15/ 16 BA12MP12 3/ 4 3/ 4 0 65 16 51 2 77 70 36 1 05 26 67 0 12 3 05 1 80 45 72 0 66 16 76 1 3/ 16 BA12MP8 3/ 4 1/ 2 0 65 16 51 2 75 69 85 0 84 21 34 0 11 2 79 1 80 45 72 0 66 16 76 1 3/ 16 BA16MP12 1 3/ 4 0 85 21 59 2 62 66 55 1 05 26 67 0 12 3 05 1 49 44 96 0 85 21 59 1 7/ 16 BA16MP16 1 1 0 94 23 88 2 92 74 17 1 32 33 40 0 13 3 30 1 78 45 21 0 85 21 59 1 7/ 16 30 Condition Weld bead too large Causes Excessive joining force Joint weld distance too close Condition Bubbles in weld joint Causes Overheating of material prior to joining Parker Hannifin Corporation Partek Tucson AZ

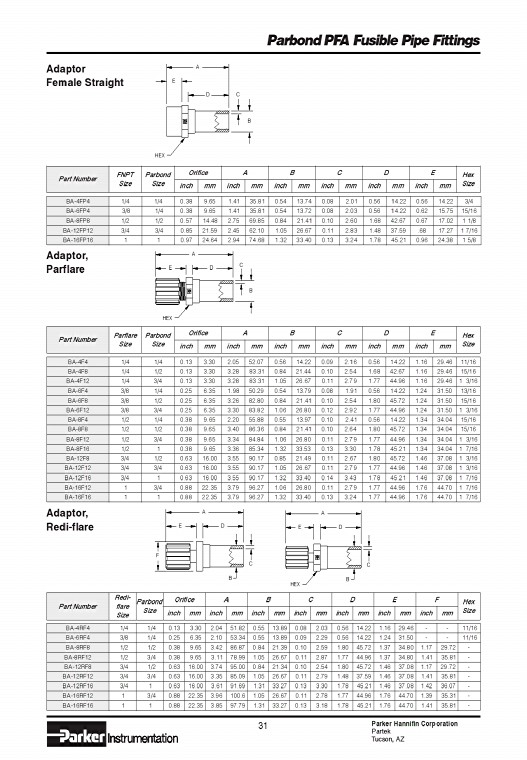

Adaptor Female Straight Part Number Adaptor Parflare Part Number FNPT Size Parflare Size HEX Parbond Size E HEX Parbond Size E A A D D C C B B 31 Parbond PFA Fusible Pipe Fi tings Orifice A B C D E Hex inch mm inch mm inch mm inch mm inch mm inch mm Size BA4FP4 1/ 4 1/ 4 0 38 9 65 1 41 35 81 0 54 13 74 0 08 2 01 0 56 14 22 0 56 14 22 3/ 4 BA6FP4 3/ 8 1/ 4 0 38 9 65 1 41 35 81 0 54 13 72 0 08 2 03 0 56 14 22 0 62 15 75 15/ 16 BA8FP8 1/ 2 1/ 2 0 57 14 48 2 75 69 85 0 84 21 41 0 10 2 60 1 68 42 67 0 67 17 02 1 1/ 8 BA12FP12 3/ 4 3/ 4 0 85 21 59 2 45 62 10 1 05 26 67 0 11 2 83 1 48 37 59 68 17 27 1 7/ 16 BA16FP16 1 1 0 97 24 64 2 94 74 68 1 32 33 40 0 13 3 24 1 78 45 21 0 96 24 38 1 5/ 8 Orifice A B C D E Hex inch mm inch mm inch mm inch mm inch mm inch mm Size BA4F4 1/ 4 1/ 4 0 13 3 30 2 05 52 07 0 56 14 22 0 09 2 16 0 56 14 22 1 16 29 46 11/ 16 BA4F8 1/ 4 1/ 2 0 13 3 30 3 28 83 31 0 84 21 44 0 10 2 54 1 68 42 67 1 16 29 46 15/ 16 BA4F12 1/ 4 3/ 4 0 13 3 30 3 28 83 31 1 05 26 67 0 11 2 79 1 77 44 96 1 16 29 46 1 3/ 16 BA6F4 3/ 8 1/ 4 0 25 6 35 1 98 50 29 0 54 13 79 0 08 1 91 0 56 14 22 1 24 31 50 13/ 16 BA6F8 3/ 8 1/ 2 0 25 6 35 3 26 82 80 0 84 21 41 0 10 2 54 1 80 45 72 1 24 31 50 15/ 16 BA6F12 3/ 8 3/ 4 0 25 6 35 3 30 83 82 1 06 26 80 0 12 2 92 1 77 44 96 1 24 31 50 1 3/ 16 BA8F4 1/ 2 1/ 4 0 38 9 65 2 20 55 88 0 55 13 97 0 10 2 41 0 56 14 22 1 34 34 04 15/ 16 BA8F8 1/ 2 1/ 2 0 38 9 65 3 40 86 36 0 84 21 41 0 10 2 64 1 80 45 72 1 34 34 04 15/ 16 BA8F12 1/ 2 3/ 4 0 38 9 65 3 34 84 84 1 06 26 80 0 11 2 79 1 77 44 96 1 34 34 04 1 3/ 16 BA8F16 1/ 2 1 0 38 9 65 3 36 85 34 1 32 33 53 0 13 3 30 1 78 45 21 1 34 34 04 1 7/ 16 BA12F8 3/ 4 1/ 2 0 63 16 00 3 55 90 17 0 85 21 49 0 11 2 67 1 80 45 72 1 46 37 08 1 3/ 16 BA12F12 3/ 4 3/ 4 0 63 16 00 3 55 90 17 1 05 26 67 0 11 2 79 1 77 44 96 1 46 37 08 1 3/ 16 BA12F16 3/ 4 1 0 63 16 00 3 55 90 17 1 32 33 40 0 14 3 43 1 78 45 21 1 46 37 08 1 7/ 16 BA16F12 1 3/ 4 0 88 22 35 3 79 96 27 1 06 26 80 0 11 2 79 1 77 44 96 1 76 44 70 1 7/ 16 BA16F16 1 1 0 88 22 35 3 79 96 27 1 32 33 40 0 13 3 24 1 77 44 96 1 76 44 70 1 7/ 16 Adaptor Rediflare Part Number F E A D B C BA4RF4 1/ 4 1/ 4 0 13 3 30 2 04 51 82 0 55 13 89 0 08 2 03 0 56 14 22 1 16 29 46 11/ 16 BA6RF4 3/ 8 1/ 4 0 25 6 35 2 10 53 34 0 55 13 89 0 09 2 29 0 56 14 22 1 24 31 50 11/ 16 BA8RF8 1/ 2 1/ 2 0 38 9 65 3 42 86 87 0 84 21 39 0 10 2 59 1 80 45 72 1 37 34 80 1 17 29 72 BA8RF12 1/ 2 3/ 4 0 38 9 65 3 11 78 99 1 05 26 67 0 11 2 87 1 77 44 96 1 37 34 80 1 41 35 81 BA12RF8 3/ 4 1/ 2 0 63 16 00 3 74 95 00 0 84 21 34 0 10 2 54 1 80 45 72 1 46 37 08 1 17 29 72 BA12RF12 3/ 4 3/ 4 0 63 16 00 3 35 85 09 1 05 26 67 0 11 2 79 1 48 37 59 1 46 37 08 1 41 35 81 BA12RF16 3/ 4 1 0 63 16 00 3 61 91 69 1 31 33 27 0 13 3 30 1 78 45 21 1 46 37 08 1 42 36 07 BA16RF12 1 3/ 4 0 88 22 35 3 96 100 6 1 05 26 67 0 11 2 78 1 77 44 96 1 76 44 70 1 39 35 31 BA16RF16 1 1 0 88 22 35 3 85 97 79 1 31 33 27 0 13 3 18 1 78 45 21 1 76 44 70 1 41 35 81 E HEX Redi Parbond Orifice A B C D E F Hex flare Size Size Size inch mm inch mm inch mm inch mm inch mm inch mm inch mm A D B C Parker Hannifin Corporation Partek Tucson AZ
