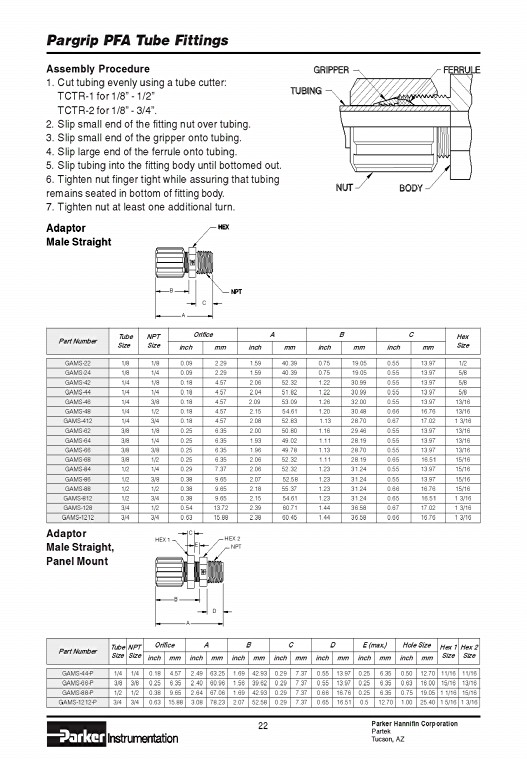

Pargrip PFA Tube Fittings Assembly Procedure 1 Cut tubing evenly using a tube cutter: TCTR1 for 1/8” 1/2” TCTR2 for 1/8” 3/4” 2 Slip small end of the fitting nut over tubing 3 Slip small end of the gripper onto tubing 4 Slip large end of the ferrule onto tubing 5 Slip tubing into the fitting body until bottomed out 6 Tighten nut finger tight while assuring that tubing remains seated in bottom of fitting body 7 Tighten nut at least one additional turn Adaptor Male Straight Part Number Tube Size NPT Size B A C HEX NPT Orifice A B C Hex inch mm inch mm inch mm inch mm Size GAMS22 1/ 8 1/ 8 0 09 2 29 1 59 40 39 0 75 19 05 0 55 13 97 1/ 2 GAMS24 1/ 8 1/ 4 0 09 2 29 1 59 40 39 0 75 19 05 0 55 13 97 5/ 8 GAMS42 1/ 4 1/ 8 0 18 4 57 2 06 52 32 1 22 30 99 0 55 13 97 5/ 8 GAMS44 1/ 4 1/ 4 0 18 4 57 2 04 51 82 1 22 30 99 0 55 13 97 5/ 8 GAMS46 1/ 4 3/ 8 0 18 4 57 2 09 53 09 1 26 32 00 0 55 13 97 13/ 16 GAMS48 1/ 4 1/ 2 0 18 4 57 2 15 54 61 1 20 30 48 0 66 16 76 13/ 16 GAMS412 1/ 4 3/ 4 0 18 4 57 2 08 52 83 1 13 28 70 0 67 17 02 1 3/ 16 GAMS62 3/ 8 1/ 8 0 25 6 35 2 00 50 80 1 16 29 46 0 55 13 97 13/ 16 GAMS64 3/ 8 1/ 4 0 25 6 35 1 93 49 02 1 11 28 19 0 55 13 97 13/ 16 GAMS66 3/ 8 3/ 8 0 25 6 35 1 96 49 78 1 13 28 70 0 55 13 97 13/ 16 GAMS68 3/ 8 1/ 2 0 25 6 35 2 06 52 32 1 11 28 19 0 65 16 51 15/ 16 GAMS84 1/ 2 1/ 4 0 29 7 37 2 06 52 32 1 23 31 24 0 55 13 97 15/ 16 GAMS86 1/ 2 3/ 8 0 38 9 65 2 07 52 58 1 23 31 24 0 55 13 97 15/ 16 GAMS88 1/ 2 1/ 2 0 38 9 65 2 18 55 37 1 23 31 24 0 66 16 76 15/ 16 GAMS812 1/ 2 3/ 4 0 38 9 65 2 15 54 61 1 23 31 24 0 65 16 51 1 3/ 16 GAMS128 3/ 4 1/ 2 0 54 13 72 2 39 60 71 1 44 36 58 0 67 17 02 1 3/ 16 GAMS1212 3/ 4 3/ 4 0 63 15 88 2 38 60 45 1 44 36 58 0 66 16 76 1 3/ 16 Adaptor Male Straight Panel Mount Part Number HEX 1 B A C E D HEX 2 NPT 22 TUBING GRIPPER NUT BODY Parker Hannifin Corporation Partek Tucson AZ FERRULE Tube NPT Orifice A B C D E ( max ) Hole Size Hex 1 Hex 2 Size Size inch mm inch mm inch mm inch mm inch mm inch mm inch mm Size Size GAMS44P 1/ 4 1/ 4 0 18 4 57 2 49 63 25 1 69 42 93 0 29 7 37 0 55 13 97 0 25 6 35 0 50 12 70 11/ 16 11/ 16 GAMS66P 3/ 8 3/ 8 0 25 6 35 2 40 60 96 1 56 39 62 0 29 7 37 0 55 13 97 0 25 6 35 0 63 16 00 15/ 16 13/ 16 GAMS88P 1/ 2 1/ 2 0 38 9 65 2 64 67 06 1 69 42 93 0 29 7 37 0 66 16 76 0 25 6 35 0 75 19 05 1 1/ 16 15/ 16 GAMS1212P 3/ 4 3/ 4 0 63 15 88 3 08 78 23 2 07 52 58 0 29 7 37 0 65 16 51 0 5 12 70 1 00 25 40 1 5/ 16 1 3/ 16

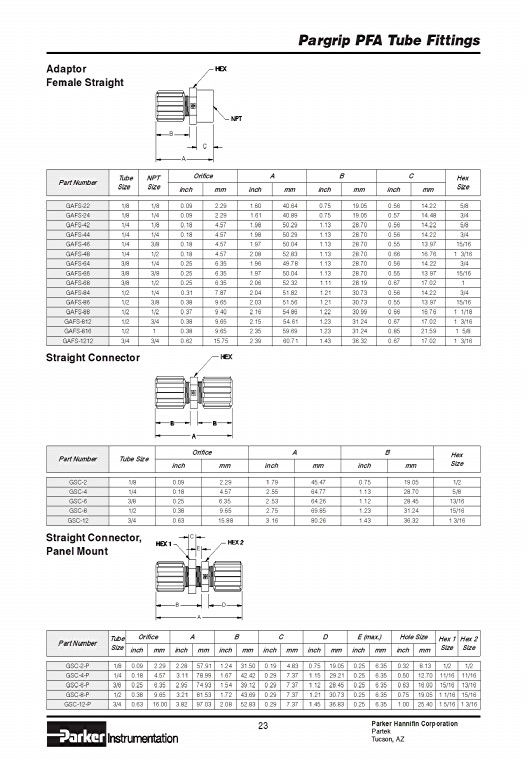

Adaptor Female Straight Part Number Tube Size NPT Size B A C HEX NPT 23 Pargrip PFA Tube Fittings Orifice A B C Hex inch mm inch mm inch mm inch mm Size GAFS22 1/ 8 1/ 8 0 09 2 29 1 60 40 64 0 75 19 05 0 56 14 22 5/ 8 GAFS24 1/ 8 1/ 4 0 09 2 29 1 61 40 89 0 75 19 05 0 57 14 48 3/ 4 GAFS42 1/ 4 1/ 8 0 18 4 57 1 98 50 29 1 13 28 70 0 56 14 22 5/ 8 GAFS44 1/ 4 1/ 4 0 18 4 57 1 98 50 29 1 13 28 70 0 56 14 22 3/ 4 GAFS46 1/ 4 3/ 8 0 18 4 57 1 97 50 04 1 13 28 70 0 55 13 97 15/ 16 GAFS48 1/ 4 1/ 2 0 18 4 57 2 08 52 83 1 13 28 70 0 66 16 76 1 3/ 16 GAFS64 3/ 8 1/ 4 0 25 6 35 1 96 49 78 1 13 28 70 0 56 14 22 3/ 4 GAFS66 3/ 8 3/ 8 0 25 6 35 1 97 50 04 1 13 28 70 0 55 13 97 15/ 16 GAFS68 3/ 8 1/ 2 0 25 6 35 2 06 52 32 1 11 28 19 0 67 17 02 1 GAFS84 1/ 2 1/ 4 0 31 7 87 2 04 51 82 1 21 30 73 0 56 14 22 3/ 4 GAFS86 1/ 2 3/ 8 0 38 9 65 2 03 51 56 1 21 30 73 0 55 13 97 15/ 16 GAFS88 1/ 2 1/ 2 0 37 9 40 2 16 54 86 1 22 30 99 0 66 16 76 1 1/ 18 GAFS812 1/ 2 3/ 4 0 38 9 65 2 15 54 61 1 23 31 24 0 67 17 02 1 3/ 16 GAFS816 1/ 2 1 0 38 9 65 2 35 59 69 1 23 31 24 0 85 21 59 1 5/ 8 GAFS1212 3/ 4 3/ 4 0 62 15 75 2 39 60 71 1 43 36 32 0 67 17 02 1 3/ 16 Straight Connector Part Number Tube Size Straight Connector Panel Mount Part Number B HEX 1 Orifice A B Hex inch mm inch mm inch mm Size GSC2 1/ 8 0 09 2 29 1 79 45 47 0 75 19 05 1/ 2 GSC4 1/ 4 0 18 4 57 2 55 64 77 1 13 28 70 5/ 8 GSC6 3/ 8 0 25 6 35 2 53 64 26 1 12 28 45 13/ 16 GSC8 1/ 2 0 38 9 65 2 75 69 85 1 23 31 24 15/ 16 GSC12 3/ 4 0 63 15 88 3 16 80 26 1 43 36 32 1 3/ 16 B A C E A B HEX D HEX 2 Tube Orifice A B C D E ( max ) Hole Size Hex 1 Hex 2 Size inch mm inch mm inch mm inch mm inch mm inch mm inch mm Size Size GSC2P 1/ 8 0 09 2 29 2 28 57 91 1 24 31 50 0 19 4 83 0 75 19 05 0 25 6 35 0 32 8 13 1/ 2 1/ 2 GSC4P 1/ 4 0 18 4 57 3 11 78 99 1 67 42 42 0 29 7 37 1 15 29 21 0 25 6 35 0 50 12 70 11/ 16 11/ 16 GSC6P 3/ 8 0 25 6 35 2 95 74 93 1 54 39 12 0 29 7 37 1 12 28 45 0 25 6 35 0 63 16 00 15/ 16 13/ 16 GSC8P 1/ 2 0 38 9 65 3 21 81 53 1 72 43 69 0 29 7 37 1 21 30 73 0 25 6 35 0 75 19 05 1 1/ 16 15/ 16 GSC12P 3/ 4 0 63 16 00 3 82 97 03 2 08 52 83 0 29 7 37 1 45 36 83 0 25 6 35 1 00 25 40 1 5/ 16 1 3/ 16 Parker Hannifin Corporation Partek Tucson AZ
