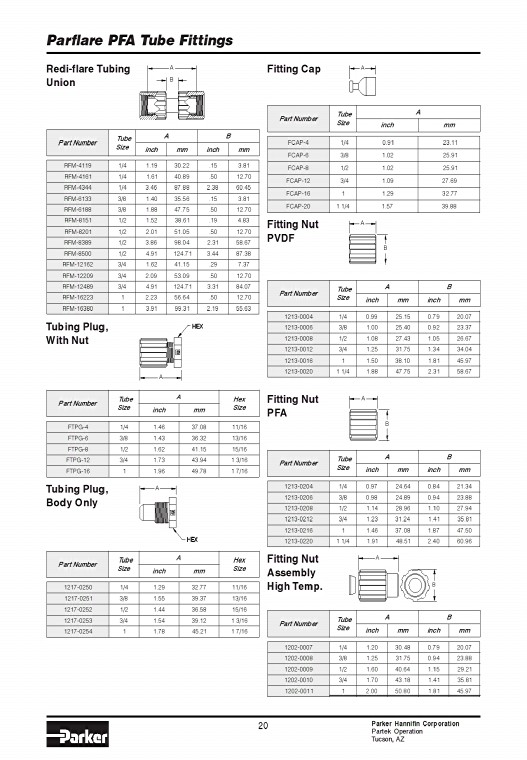

Parflare PFA Tube Fittings Rediflare Tubing Union Part Number Tubing Plug With Nut Part Number Tubing Plug Body Only Part Number Tube Size Tube Size Tube Size A B inch mm inch mm RFM4119 1/ 4 1 19 30 22 15 3 81 RFM4161 1/ 4 1 61 40 89 50 12 70 RFM4344 1/ 4 3 46 87 88 2 38 60 45 RFM6133 3/ 8 1 40 35 56 15 3 81 RFM6188 3/ 8 1 88 47 75 50 12 70 RFM8151 1/ 2 1 52 38 61 19 4 83 RFM8201 1/ 2 2 01 51 05 50 12 70 RFM8389 1/ 2 3 86 98 04 2 31 58 67 RFM8500 1/ 2 4 91 124 71 3 44 87 38 RFM12162 3/ 4 1 62 41 15 29 7 37 RFM12209 3/ 4 2 09 53 09 50 12 70 RFM12489 3/ 4 4 91 124 71 3 31 84 07 RFM16223 1 2 23 56 64 50 12 70 RFM16380 1 3 91 99 31 2 19 55 63 A A B HEX A Hex inch mm Size FTPG4 1/ 4 1 46 37 08 11/ 16 FTPG6 3/ 8 1 43 36 32 13/ 16 FTPG8 1/ 2 1 62 41 15 15/ 16 FTPG12 3/ 4 1 73 43 94 1 3/ 16 FTPG16 1 1 96 49 78 1 7/ 16 A HEX A Hex inch mm Size 12170250 1/ 4 1 29 32 77 11/ 16 12170251 3/ 8 1 55 39 37 13/ 16 12170252 1/ 2 1 44 36 58 15/ 16 12170253 3/ 4 1 54 39 12 1 3/ 16 12170254 1 1 78 45 21 1 7/ 16 20 Fitting Cap Part Number Fitting Nut PVDF Part Number Fitting Nut PFA Part Number Fitting Nut Assembly High Temp Part Number Tube Size Tube Size Tube Size Tube Size A A A inch mm FCAP4 1/ 4 0 91 23 11 FCAP6 3/ 8 1 02 25 91 FCAP8 1/ 2 1 02 25 91 FCAP12 3/ 4 1 09 27 69 FCAP16 1 1 29 32 77 FCAP20 1 1/ 4 1 57 39 88 A B inch mm inch mm 12130004 1/ 4 0 99 25 15 0 79 20 07 12130006 3/ 8 1 00 25 40 0 92 23 37 12130008 1/ 2 1 08 27 43 1 05 26 67 12130012 3/ 4 1 25 31 75 1 34 34 04 12130016 1 1 50 38 10 1 81 45 97 12130020 1 1/ 4 1 88 47 75 2 31 58 67 A A B inch mm inch mm 12130204 1/ 4 0 97 24 64 0 84 21 34 12130206 3/ 8 0 98 24 89 0 94 23 88 12130208 1/ 2 1 14 28 96 1 10 27 94 12130212 3/ 4 1 23 31 24 1 41 35 81 12130216 1 1 46 37 08 1 87 47 50 12130220 1 1/ 4 1 91 48 51 2 40 60 96 A A B inch mm inch mm 12020007 1/ 4 1 20 30 48 0 79 20 07 12020008 3/ 8 1 25 31 75 0 94 23 88 12020009 1/ 2 1 60 40 64 1 15 29 21 12020010 3/ 4 1 70 43 18 1 41 35 81 12020011 1 2 00 50 80 1 81 45 97 B B Parker Hannifin Corporation Partek Operation Tucson AZ B

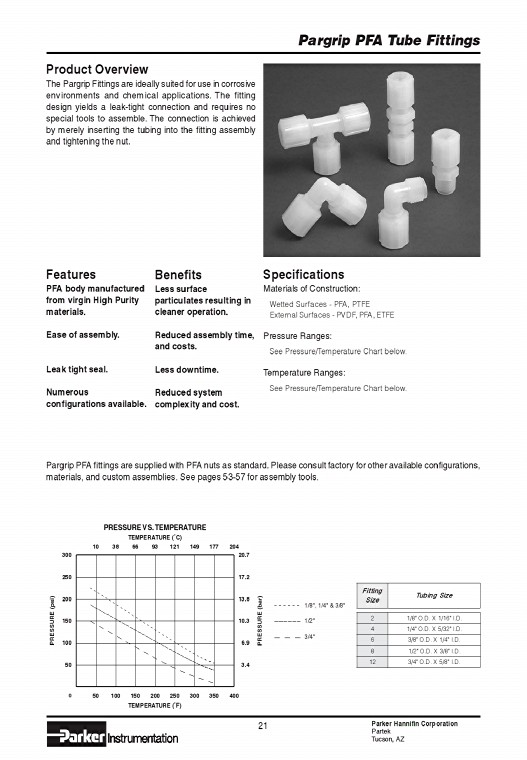

Product Overview The Pargrip Fittings are ideally suited for use in corrosive environments and chemical applications The fitting design yields a leaktight connection and requires no special tools to assemble The connection is achieved by merely inserting the tubing into the fitting assembly and tightening the nut Features PFA body manufactured from virgin High Purity materials Ease of assembly Leak tight seal Numerous configurations available Benefits Less surface particulates resulting in cleaner operation Reduced assembly time and costs Less downtime Reduced system complexity and cost 21 Pargrip PFA Tube Fittings Specifications Materials of Construction: Wetted Surfaces PFA PTFE External Surfaces PVDF PFA ETFE Pressure Ranges: See Pressure/Temperature Chart below Temperature Ranges: See Pressure/Temperature Chart below Pargrip PFA fittings are supplied with PFA nuts as standard Please consult factory for other available configurations materials and custom assemblies See pages 5357 for assembly tools PRESSURE (psi) 300 250 200 150 100 50 PRESSURE VS TEMPERATURE TEMPERATURE (˚C) 10 38 66 93 121 149 177 204 207 0 50 100 150 200 250 300 350 400 TEMPERATURE (˚F) 172 138 (bar) 103 69 PRESSURE 34 1/8" 1/4" & 3/8" 1/2" 3/4" Fitting Size Tubing Size 2 1/ 8" O D X 1/ 16" I D 4 1/ 4" O D X 5/ 32" I D 6 3/ 8" O D X 1/ 4" I D 8 1/ 2" O D X 3/ 8" I D 1 2 3/ 4" O D X 5/ 8" I D Parker Hannifin Corporation Partek Tucson AZ
