Parflare PFA Tube Fittings TUBING BODY BODY NUT NUT MFT Manual Flaring Tool 1/4" 1 1/4" Tubing Sizes* 1 Cut tubing evenly using a tube cutter: TCTR1 for 1/8" 1/2" TCTR2 for 1/8" 3/4" TCTR3 for 1/8" 1 1/2" 2 For PVDF or PFA nuts slip small end over tubing For HT nut assemblies slip small end of nut & small end of gripper over tubing 3 Using the HG1** Heat Gun on high setting hold the end of tubing approximately 1/2" from gun and rotate tubing slowly until a fine whitish line appears around tube Alternately tubing can be heated for a timed period corresponding to Table 1 4 Remove tubing from heat source and immediately push over the appropriate flaring mandrel until end of tubing reaches the mandrel stop shoulder 5 Maintain tubing on mandrel together until cool Refer to Table 1 for appropriate cooling times 6 Allow tubing to cool on mandrel for an additional 2 to 3 minutes Alternately the tubing can be assembled as per step 7 below immediately completing step 5 above 7 Push flared tubing end over desired fitting body until it stops Make sure that gap between end of tubing and fitting body shoulder is not more than 125" (32mm) 8 For PVDF or PFA nuts tighten onto fitting body as per Table 1 For HT nut assemblies tighten onto fitting body per Table 1 Once desired temperature has been reached retighten per Table 1 * HT nut assemblies are for 1/4" 1" sizes only ** See page 41 for HG1 Specifications Parflare Rediflare FG Electronic Flare Gun 1/4" 1" Tubing Sizes 1 Cut tubing evenly using a tube cutter: TCTR1 for 1/8" 1/2" TCTR2 for 1/8" 3/4" TCTR3 for 1/8" 1 1/2" 2 For PVDF or PFA nuts slip small end over tubing For HT nut assemblies slip small end of nut and small end of gripper over tubing 3 Holding the flare gun push lever to the most forward position 4 Squeeze trigger 12 to 14 times to reset the mandrel to the start position 5 Move top lever to the most rear position 6 Insert the correct sized tubing See page 56 7 Click trigger until resistance is lost 8 Plug in tool and put the lever in the center position 9 After 30 seconds you will hear a beep 10 Ratchet the trigger until resistance is felt and note the amber LED coming on to indicate that cooling has begun 11 After this light goes out move the lever into the most forward position 12 Remove the flared tubing 13 Push flared tubing end over desired fitting body until it stops Make sure that gap between end of tubing and fitting body shoulder is not more than 125" (32mm) 14 For PVDF or PFA nuts tighten onto fitting body as per Table 1 below For HT nut assemblies tighten onto fitting body per Table 1 Once desired temperature has been reached retighten per Table 1 F F i i t t t t i i n n g g S Sii i i z z e 1 1 / 4 " " Table 1 3 3 / 8 " 1 1 / 2 " 3 3 / 4 " 1" 1" 1 " 1 1 1 1 1 / / 4 4 " " H Heee e eaa a att t tiii i inn n n g g tt t tiii i imm m mee e e (( ( ( s see e e c c )) ) ) f foo o orr r r P PFF F F A A T Tuu u ubb b biii i n n g g 15 25 25 25 25 25 H H o o l l d d i i n ngg g g t t i i m m e e o o n n m m a a n n d d r r e e l l 20 20 20 20 25 25 A A d d d d i i t t i i o onn n n a a l l c c o o o o l l i i n n g g t t i imm m mee e e ( ( mm m m i i n n ) 2 2 3 3 3 3 P P V V D D F F & & P P F F A A N N u u t t s s m m i i n n i i m m u u m m t t i i g g h h t t e e n n i i n n g g t t o o r r q q u u e ( i i n n c c h h l l b b s s / / N N m m ) H TT T T N N u t AA A s s e m b ll l i e s m m i i n n i i m m u u m m t t i i gg g h h t t e e n n i i n n g g t t o o r r q q u u e e ( ( ii i n n c c h h l l b b s s / / NN N m m )) ) 5 / 6 8 / 9 11/ 1 2 14/ 1 6 30/ 3 4 75 / 8 4 14/ 1 6 14/ 1 6 18/ 2 0 18/ 2 0 50/ 5 7 NA 4 Parker Hannifin Corporation Partek Operation Tucson AZ

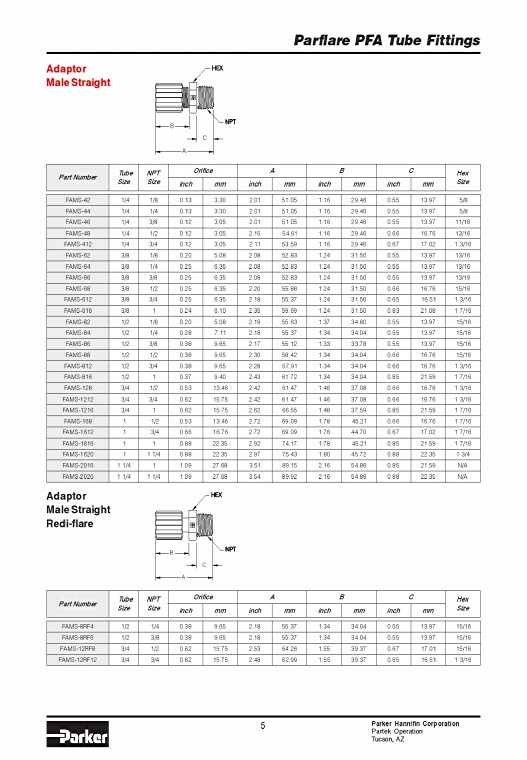

Adaptor Male Straight Part Number Adaptor Male Straight Rediflare Part Number Tube Size Tube Size NPT Size NPT Size B 5 Parflare PFA Tube Fittings Orifice A B C Hex inch mm inch mm inch mm inch mm Size FAMS42 1/ 4 1/ 8 0 13 3 30 2 01 51 05 1 16 29 46 0 55 13 97 5/ 8 FAMS44 1/ 4 1/ 4 0 13 3 30 2 01 51 05 1 16 29 46 0 55 13 97 5/ 8 FAMS46 1/ 4 3/ 8 0 12 3 05 2 01 51 05 1 16 29 46 0 55 13 97 11/ 16 FAMS48 1/ 4 1/ 2 0 12 3 05 2 15 54 61 1 16 29 46 0 66 16 76 13/ 16 FAMS412 1/ 4 3/ 4 0 12 3 05 2 11 53 59 1 16 29 46 0 67 17 02 1 3/ 16 FAMS62 3/ 8 1/ 8 0 20 5 08 2 08 52 83 1 24 31 50 0 55 13 97 13/ 16 FAMS64 3/ 8 1/ 4 0 25 6 35 2 08 52 83 1 24 31 50 0 55 13 97 13/ 16 FAMS66 3/ 8 3/ 8 0 25 6 35 2 08 52 83 1 24 31 50 0 55 13 97 13/ 16 FAMS68 3/ 8 1/ 2 0 25 6 35 2 20 55 88 1 24 31 50 0 66 16 76 15/ 16 FAMS612 3/ 8 3/ 4 0 25 6 35 2 18 55 37 1 24 31 50 0 65 16 51 1 3/ 16 FAMS616 3/ 8 1 0 24 6 10 2 35 59 69 1 24 31 50 0 83 21 08 1 7/ 16 FAMS82 1/ 2 1/ 8 0 20 5 08 2 19 55 63 1 37 34 80 0 55 13 97 15/ 16 FAMS84 1/ 2 1/ 4 0 28 7 11 2 18 55 37 1 34 34 04 0 55 13 97 15/ 16 FAMS86 1/ 2 3/ 8 0 38 9 65 2 17 55 12 1 33 33 78 0 55 13 97 15/ 16 FAMS88 1/ 2 1/ 2 0 38 9 65 2 30 58 42 1 34 34 04 0 66 16 76 15/ 16 FAMS812 1/ 2 3/ 4 0 38 9 65 2 28 57 91 1 34 34 04 0 66 16 76 1 3/ 16 FAMS816 1/ 2 1 0 37 9 40 2 43 61 72 1 34 34 04 0 85 21 59 1 7/ 16 FAMS128 3/ 4 1/ 2 0 53 13 46 2 42 61 47 1 46 37 08 0 66 16 76 1 3/ 16 FAMS1212 3/ 4 3/ 4 0 62 15 75 2 42 61 47 1 46 37 08 0 66 16 76 1 3/ 16 FAMS1216 3/ 4 1 0 62 15 75 2 62 66 55 1 48 37 59 0 85 21 59 1 7/ 16 FAMS168 1 1/ 2 0 53 13 46 2 72 69 09 1 78 45 21 0 66 16 76 1 7/ 16 FAMS1612 1 3/ 4 0 66 16 76 2 72 69 09 1 76 44 70 0 67 17 02 1 7/ 16 FAMS1616 1 1 0 88 22 35 2 92 74 17 1 78 45 21 0 85 21 59 1 7/ 16 FAMS1620 1 1 1/ 4 0 88 22 35 2 97 75 43 1 80 45 72 0 88 22 35 1 3/ 4 FAMS2016 1 1/ 4 1 1 09 27 68 3 51 89 15 2 16 54 86 0 85 21 59 N/ A FAMS2020 1 1/ 4 1 1/ 4 1 09 27 68 3 54 89 92 2 16 54 86 0 88 22 35 N/ A B A A C C HEX HEX NPT NPT Orifice A B C Hex inch mm inch mm inch mm inch mm Size FAMS8RF4 1/ 2 1/ 4 0 38 9 65 2 18 55 37 1 34 34 04 0 55 13 97 15/ 16 FAMS8RF6 1/ 2 3/ 8 0 38 9 65 2 18 55 37 1 34 34 04 0 55 13 97 15/ 16 FAMS12RF8 3/ 4 1/ 2 0 62 15 75 2 53 64 26 1 55 39 37 0 67 17 01 15/ 16 FAMS12RF12 3/ 4 3/ 4 0 62 15 75 2 48 62 99 1 55 39 37 0 65 16 51 1 3/ 16 Parker Hannifin Corporation Partek Operation Tucson AZ
