Table of Contents Parflare Series PFA Tube Fittings Product Overview 3 Flaring and Assembly Procedure 4 Straight Connectors 511 Elbow Connectors 1114 Tee Connectors 1519 Rediflare Tubing Unions 20 Tubing Plugs 20 Fitting Caps 20 Fitting Nuts 20 Pargrip Series PFA Tube Fittings Product Overview 21 Assembly Procedure 22 Straight Connectors 2224 Elbow Connectors 2426 Tee Connectors 2627 Tubing Plugs 28 Fitting Caps 28 Fitting Nuts 28 Ferrules & Grippers 28 Parbond Series PFA Fusible Pipe Fittings Product Overview 29 Weld Examples 30 Straight Adaptors 3032 Flange Adaptors 32 Bond Reducers 33 Union Adaptors 33 Bond Caps 33 PVDF Transition Adaptors 34 Elbow Connectors 3435 Tee Connectors 3536 Pipe Series PFA Schedule 40 Pipe Fittings Product Overview 37 Pipe Plugs 38 Pipe Nipples 38 Pipe Bushings 38 Pipe Couplings 39 Pipe Female Reducers 39 Pipe Elbows 39 Pipe Tees 39 Tools and Accessories NW Nut Wrench 40 MFT Manual Flaring Tool 41 FG Electronic Flare Gun 4243 Offer of Sale 46 FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH PERSONAL INJURY AND PROPERTY DAMAGE This document and other information from Parker Hannifin Corporation its subsidiaries and authorized distributors provide product and/or system options for further investigation by users having technical expertise It is important that you analyze all aspects of your application and review the information concerning the product or system in the current product catalog Due to the variety of operating conditions and applications for these products or systems the user through its own analysis and testing is solely responsible for making the final selection of the products and systems and assuring that all performance safety and warning requirements of the application are met The products described herein including without limitation product features specifications designs availability and pricing are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice ⓒ Copyright 2003 Parker Hannifin Corporation All Rights Reserved WARNING Parker Hannifin Corporation Partek Operation Tucson AZ

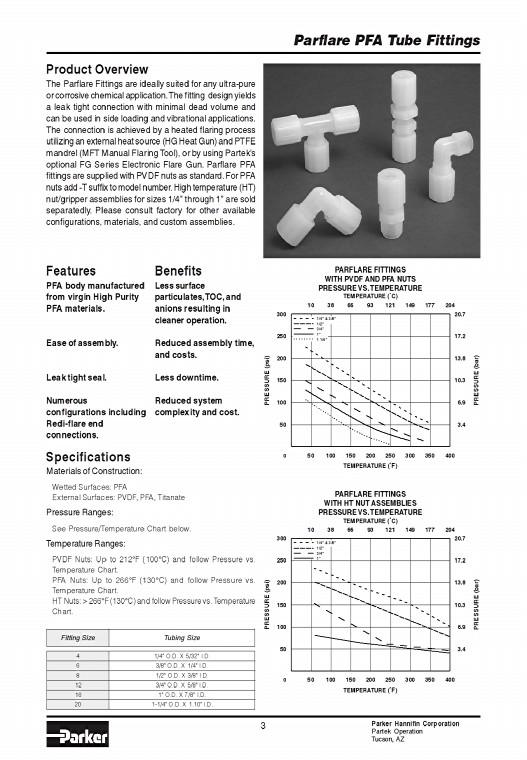

Product Overview The Parflare Fittings are ideally suited for any ultrapure or corrosive chemical application The fitting design yields a leak tight connection with minimal dead volume and can be used in side loading and vibrational applications The connection is achieved by a heated flaring process utilizing an external heat source (HG Heat Gun) and PTFE mandrel (MFT Manual Flaring Tool) or by using Partek’s optional FG Series Electronic Flare Gun Parflare PFA fittings are supplied with PVDF nuts as standard For PFA nuts add T suffix to model number High temperature (HT) nut/gripper assemblies for sizes 1/4” through 1” are sold separatedly Please consult factory for other available configurations materials and custom assemblies Features PFA body manufactured from virgin High Purity PFA materials Ease of assembly Leak tight seal Numerous configurations including Rediflare end connections Specifications Materials of Construction: Wetted Surfaces: PFA External Surfaces: PVDF PFA Titanate Pressure Ranges: See Pressure/Temperature Chart below Temperature Ranges: Benefits Less surface particulates TOC and anions resulting in cleaner operation Reduced assembly time and costs Less downtime Reduced system complexity and cost PVDF Nuts: Up to 212°F (100°C) and follow Pressure vs Temperature Chart PFA Nuts: Up to 266°F (130°C) and follow Pressure vs Temperature Chart HT Nuts: > 266°F (130°C) and follow Pressure vs Temperature Chart Fitting Size Tubing Size 4 1/ 4" O D X 5/ 32" I D 6 3/ 8" O D X 1/ 4" I D 8 1/ 2" O D X 3/ 8" I D 1 2 3/ 4" O D X 5/ 8" I D 1 6 1" O D X 7/ 8" I D 2 0 11/ 4" O D X 1 10" I D PRESSURE (psi) PRESSURE (psi) 3 300 250 200 150 100 50 300 250 200 150 100 Parflare PFA Tube Fittings PARFLARE FITTINGS WITH PVDF AND PFA NUTS PRESSURE VS TEMPERATURE TEMPERATURE (˚C) 10 38 66 93 121 149 177 204 207 1/4" & 3/8" 1/2" 3/4" 1" 1 1/4" 0 50 100 150 200 250 300 350 400 50 TEMPERATURE (˚F) TEMPERATURE (˚F) 172 Parker Hannifin Corporation Partek Operation Tucson AZ 138 (bar) 103 69 PRESSURE PARFLARE FITTINGS WITH HT NUT ASSEMBLIES PRESSURE VS TEMPERATURE TEMPERATURE (˚C) 10 38 66 93 121 149 177 204 207 1/4" & 3/8" 1/2" 3/4" 1" 0 50 100 150 200 250 300 350 400 34 172 138 (bar) 103 69 PRESSURE 34
