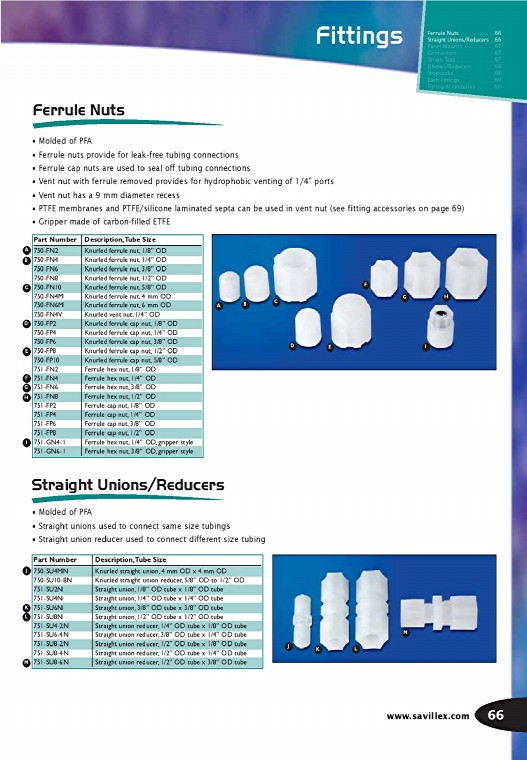

65 Fittings Table of Contents Ferrule Nuts 66 Straight Unions/Reducers 66 Panel Mounts 67 Connectors 67 Union Tees 67 Elbows/Reducers 68 Stopcocks 68 Barb Fittings 69 Fitting Accessories 69

A B C D E F G H I J K L M Ferrule Nuts Part Number DescriptionTube Size 750FN2 Knurled ferrule nut 1/8” OD 750FN4 Knurled ferrule nut 1/4” OD 750FN6 Knurled ferrule nut 3/8” OD 750FN8 Knurled ferrule nut 1/2” OD 750FN10 Knurled ferrule nut 5/8” OD 750FN4M Knurled ferrule nut 4 mm OD 750FN6M Knurled ferrule nut 6 mm OD 750FN4V Knurled vent nut 1/4” OD 750FP2 Knurled ferrule cap nut 1/8” OD 750FP4 Knurled ferrule cap nut 1/4” OD 750FP6 Knurled ferrule cap nut 3/8” OD 750FP8 Knurled ferrule cap nut 1/2” OD 750FP10 Knurled ferrule cap nut 5/8” OD 751FN2 Ferrule hex nut 1/8” OD 751FN4 Ferrule hex nut 1/4” OD 751FN6 Ferrule hex nut 3/8” OD 751FN8 Ferrule hex nut 1/2” OD 751FP2 Ferrule cap nut 1/8” OD 751FP4 Ferrule cap nut 1/4” OD 751FP6 Ferrule cap nut 3/8” OD 751FP8 Ferrule cap nut 1/2” OD 751GN41 Ferrule hex nut 1/4” OD gripper style 751GN61 Ferrule hex nut 3/8” OD gripper style Fittings Ferrule Nuts 66 Straight Unions/Reducers 66 Panel Mounts 67 Connectors 67 Union Tees 67 Elbows/Reducers 68 Stopcocks 68 Barb Fittings 69 Fitting Accessories 69 Molded of PFA Ferrule nuts provide for leakfree tubing connections Ferrule cap nuts are used to seal off tubing connections Vent nut with ferrule removed provides for hydrophobic venting of 1/4” ports Vent nut has a 9 mm diameter recess PTFE membranes and PTFE/silicone laminated septa can be used in vent nut (see fitting accessories on page 69) Gripper made of carbonfilled ETFE Straight Unions/Reducers Molded of PFA Straight unions used to connect same size tubings Straight union reducer used to connect different size tubing Part Number DescriptionTube Size 750SU4MN Knurled straight union 4 mm OD x 4 mm OD 750SU108N Knurled straight union reducer 5/8” OD to 1/2” OD 751SU2N Straight union 1/8” OD tube x 1/8” OD tube 751SU4N Straight union 1/4” OD tube x 1/4” OD tube 751SU6N Straight union 3/8” OD tube x 3/8” OD tube 751SU8N Straight union 1/2” OD tube x 1/2” OD tube 751SU42N Straight union reducer 1/4” OD tube x 1/8” OD tube 751SU64N Straight union reducer 3/8” OD tube x 1/4” OD tube 751SU82N Straight union reducer 1/2” OD tube x 1/8” OD tube 751SU84N Straight union reducer 1/2” OD tube x 1/4” OD tube 751SU86N Straight union reducer 1/2” OD tube x 3/8” OD tube A B C J D E K L F G H M I wwwsavillexcom 66
