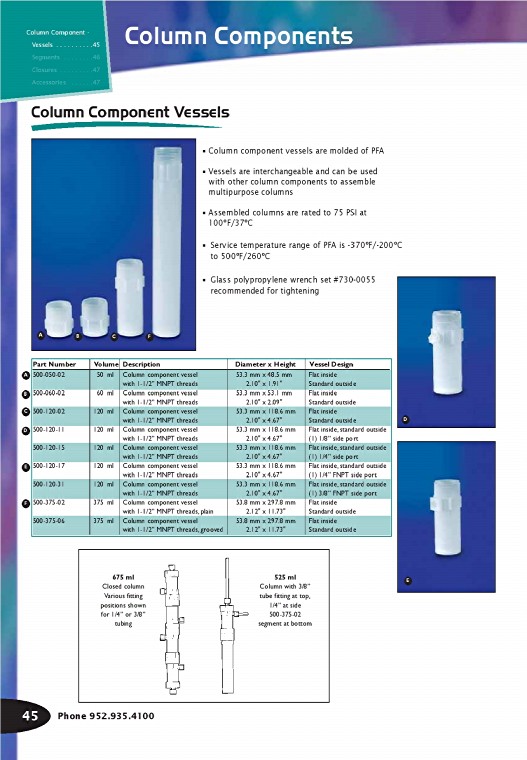

A B C D E F Column Component Vessels 45 Segments 46 Closures 47 Accessories 47 45 Phone 9529354100 Column Components Column Component Vessels A B C F Column component vessels are molded of PFA Vessels are interchangeable and can be used with other column components to assemble multipurpose columns Assembled columns are rated to 75 PSI at 100ºF/37ºC Service temperature range of PFA is 370ºF/200ºC to 500ºF/260ºC Glass polypropylene wrench set #7300055 recommended for tightening Part Number Volume Description Diameter x Height Vessel Design 50005002 50 ml Column component vessel 533 mm x 485 mm Flat inside with 11/2” MNPT threads 210" x 191" Standard outside 50006002 60 ml Column component vessel 533 mm x 531 mm Flat inside with 11/2” MNPT threads 210" x 209" Standard outside 50012002 120 ml Column component vessel 533 mm x 1186 mm Flat inside with 11/2” MNPT threads 210" x 467" Standard outside 50012011 120 ml Column component vessel 533 mm x 1186 mm Flat inside standard outside with 11/2” MNPT threads 210" x 467" (1) 1/8” side port 50012015 120 ml Column component vessel 533 mm x 1186 mm Flat inside standard outside with 11/2” MNPT threads 210" x 467" (1) 1/4” side port 50012017 120 ml Column component vessel 533 mm x 1186 mm Flat inside standard outside with 11/2” MNPT threads 210" x 467" (1) 1/4” FNPT side port 50012031 120 ml Column component vessel 533 mm x 1186 mm Flat inside standard outside with 11/2” MNPT threads 210" x 467" (1) 3/8” FNPT side port 50037502 375 ml Column component vessel 538 mm x 2978 mm Flat inside with 11/2” MNPT threads plain 212" x 1173" Standard outside 50037506 375 ml Column component vessel 538 mm x 2978 mm Flat inside with 11/2” MNPT threads grooved 212" x 1173" Standard outside 675 ml Closed column Various fitting positions shown for 1/4” or 3/8” tubing 525 ml Column with 3/8” tube fitting at top 1/4” at side 50037502 segment at bottom D E

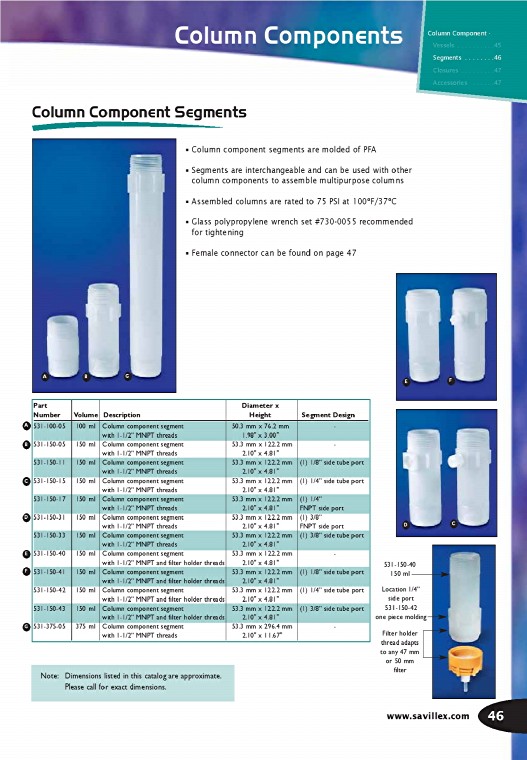

A B C D E F G Column Component Segments A B G Column Components Column component segments are molded of PFA Segments are interchangeable and can be used with other column components to assemble multipurpose columns Assembled columns are rated to 75 PSI at 100ºF/37ºC Glass polypropylene wrench set #7300055 recommended for tightening Female connector can be found on page 47 Part Diameter x Number Volume Description Height Segment Design 53110005 100 ml Column component segment 503 mm x 762 mm with 11/2” MNPT threads 198" x 300" 53115005 150 ml Column component segment 533 mm x 1222 mm with 11/2” MNPT threads 210" x 481" 53115011 150 ml Column component segment 533 mm x 1222 mm (1) 1/8” side tube port with 11/2” MNPT threads 210" x 481" 53115015 150 ml Column component segment 533 mm x 1222 mm (1) 1/4” side tube port with 11/2” MNPT threads 210" x 481" 53115017 150 ml Column component segment 533 mm x 1222 mm (1) 1/4” with 11/2” MNPT threads 210" x 481" FNPT side port 53115031 150 ml Column component segment 533 mm x 1222 mm (1) 3/8” with 11/2” MNPT threads 210" x 481" FNPT side port 53115033 150 ml Column component segment 533 mm x 1222 mm (1) 3/8” side tube port with 11/2” MNPT threads 210" x 481" 53115040 150 ml Column component segment 533 mm x 1222 mm with 11/2” MNPT and filter holder threads 210" x 481" 53115041 150 ml Column component segment 533 mm x 1222 mm (1) 1/8” side tube port with 11/2” MNPT and filter holder threads 210" x 481" 53115042 150 ml Column component segment 533 mm x 1222 mm (1) 1/4” side tube port with 11/2” MNPT and filter holder threads 210" x 481" 53115043 150 ml Column component segment 533 mm x 1222 mm (1) 3/8” side tube port with 11/2” MNPT and filter holder threads 210" x 481" 53137505 375 ml Column component segment 533 mm x 2964 mm with 11/2” MNPT threads 210" x 1167" Note: Dimensions listed in this catalog are approximate Please call for exact dimensions E D 53115040 150 ml Location 1/4” side port 53115042 one piece molding Filter holder thread adapts to any 47 mm or 50 mm filter Column Component Vessels 45 Segments 46 Closures 47 Accessories 47 wwwsavillexcom F C 46
