Subboiling Still Assemblies 42 Condenser Assembly 42 Subboiling Still Components 43 Subboiling Still Accessories 43 A B C D E F G 43 Part Number Volume Description 50012002 120 ml Vessel only 50037502 375 ml Vessel only 100100001 1000 ml Jar only 100200001 2000 ml Jar only Phone 9529354100 Subboiling Stills Subboiling Still Components Use these components to build stills to fit your specific application Elbow Vessels Molded of PFA Two vessels can be connected using 90º elbow to form subboiling stills Closure Molded of PFA Modified closure connects elbow to standard 1000 2000 and 2200 ml jars Part Number Description Use With 60011070 Closure with integral molded 11/2” MNPT threads 1000 2000 and 2200 ml jars screws directly into elbow Elbow Molded of PFA 90º elbow is used to connect 120 ml and 375 ml vessels to form subboiling stills Part Number Description 5211 90º elbow includes two fused end caps Part Number Description Dimensions 5221 Still condenser coil 5/32” ID x 1/4” OD Closure Condenser Coil Molded of PFA 11/2” coil diameter fits inside standard 375 ml vessel 6” tubing tails allow for connection to 1/4” fitting Subboiling Still Accessories Vessel Part Number Description Use With 7300055 Glass polypropylene wrench set 120 ml vessels 7300057 Glass polypropylene wrench set 375 ml vessels C D A E F G B

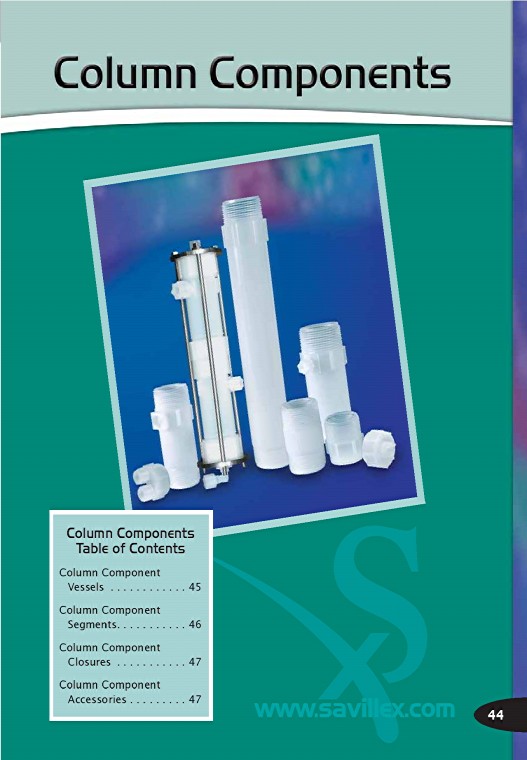

Column Components Table of Contents Column Component Vessels 45 Column Component Segments 46 Column Component Closures 47 Column Component Accessories 47 44
